ENTRY AND START SYSTEM(for Entry Function), Diagnostic DTC:B27A6

DTC Code DTC Name
B27A6 Open in Rear Floor Electrical Key Oscillator Circuit

DESCRIPTION

The certification ECU (smart key ECU assembly) generates a request signal and transmits the signal to the No. 3 indoor electrical key antenna assembly (rear floor). For the No. 3 indoor electrical key antenna assembly (rear floor) to detect when the electrical key transmitter sub-assembly is inside the vehicle, the signal from the certification ECU (smart key ECU assembly) requesting a response from the electrical key transmitter sub-assembly is transmitted inside the vehicle. DTC B27A6 is stored by the certification ECU (smart key ECU assembly) when an open circuit is detected between the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (rear floor) (between terminals CLG6 and ANTE6, or terminals CG6B and CLGB).

DTC Code DTC Detection Condition Trouble Area DTC Output Confirmation Operation
B27A6 An open circuit is detected in the circuit between the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (rear floor) (CLG6 - ANTE6, CG6B - CLGB) (1 trip detection logic*).

  • Harness or connector

  • No. 3 indoor electrical key antenna assembly (rear floor)

  • Certification ECU (smart key ECU assembly)

 Any time

Vehicle Condition and Fail-safe Operation when Malfunction Detected
Vehicle Condition when Malfunction Detected Fail-safe Operation when Malfunction Detected

When electrical key transmitter sub-assembly is in rear seat area:


  • Power source mode does not change when power switch is pressed

  • Electrical key transmitter sub-assembly locked inside vehicle

 -
Related Data List and Active Test
DTC Code Data List and Active Test
B27A6 Key diagnostic mode can be used to perform troubleshooting

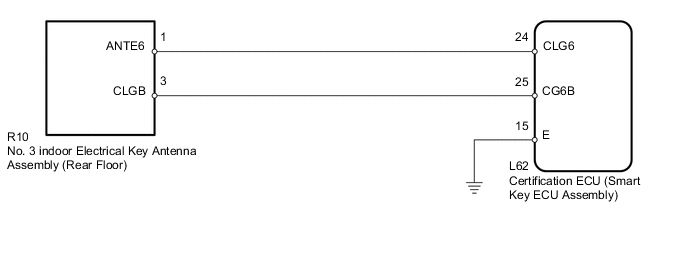

WIRING DIAGRAM

A005EAZE57

CAUTION / NOTICE / HINT

Note


  • The entry and start system (for Entry Function) uses a multiplex communication system (LIN communication system) and the CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting Click here. Troubleshoot the entry and start system (for Entry Function) after confirming that the communication systems are functioning properly.

  • When using the GTS with the power switch off to troubleshoot:

    Connect the GTS to the DLC3 and turn a courtesy light switch on and off at 1.5-second intervals until communication between the GTS and vehicle begins.

  • Before replacing the certification ECU (smart key ECU assembly), refer to the Service Bulletin.

  • After repair, confirm DTC not reoccur with performing the "DTC Output Confirmation Operation".

  • No. 3 indoor electrical key antenna assembly (rear floor) has an antenna coil between ANTE6 and CLGB terminals.

PROCEDURE


  1. CHECK CONNECTOR CONNECTION


    1. Turn the power switch off.

    2. Check that the connectors are properly connected to the certification ECU (smart key ECU assembly) and No. 3 indoor electrical key antenna assembly (rear floor).

      OK
      Connectors are properly connected.

    NG

    CONNECT CONNECTORS PROPERLY

    OK

  2. CHECK HARNESS AND CONNECTOR (CERTIFICATION ECU - NO. 3 INDOOR ELECTRICAL KEY ANTENNA)


    1. Disconnect the L62 certification ECU (smart key ECU assembly) connector.

    2. Disconnect the R10 No. 3 indoor electrical key antenna assembly (rear floor) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Condition Specified Condition
      L62-24 (CLG6) - R10-1 (ANTE6) Always Below 1 Ω
      L62-25 (CG6B) - R10-3 (CLGB) Always Below 1 Ω
      L62-15 (E) - Body ground Always Below 1 Ω
      L62-24 (CLG6) or R10-1 (ANTE6) - Body ground Always 10 kΩ or higher
      L62-25 (CG6B) or R10-3 (CLGB) - Body ground Always 10 kΩ or higher

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    OK

  3. CHECK CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (OUTPUT TO NO. 3 INDOOR ELECTRICAL KEY ANTENNA [REAR FLOOR])


    1. Connect the L62 certification ECU (smart key ECU assembly) connector.

      A005AJIE04
      Text in Illustration
      *1 Waveform - -
      *a

      Component with harness connected

      (Certification ECU (smart key ECU assembly))

      		 *b Door open
      *c After approximately 30 seconds from when the door is closed - -

    2. Connect the R10 No. 3 indoor electrical key antenna assembly (rear floor) connector.

    3. Using an oscilloscope, check the waveform.

      OK
      Tester Connection Condition Tool Setting Specified Condition
      L62-24 (CLG6) - L62-15 (E)

      Procedure:


      1. Power switch off

      2. Key not inside vehicle

      3. Door is open

      4. Door is closed

      5. 30 seconds elapse

      		 2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)
      L62-25 (CG6B) - L62-15 (E)

      Procedure:


      1. Power switch off

      2. Key not inside vehicle

      3. Door is open

      4. Door is closed

      5. 30 seconds elapse

      		 2 V/DIV., 500 ms/DIV. Pulse generation (See waveform)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

    OK

  4. REPLACE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY (REAR FLOOR)


    1. Temporarily replace the No. 3 indoor electrical key antenna assembly (rear floor) with a new or normally functioning one Click here.


    NEXT

  5. CLEAR DTC


    1. Clear the DTCs Click here.


    NEXT

  6. CHECK FOR DTC


    1. Check for DTCs Click here.

      OK
      DTC B27A6 is not output.

    OK

    END (NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY WAS DEFECTIVE)

    NG

    REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
