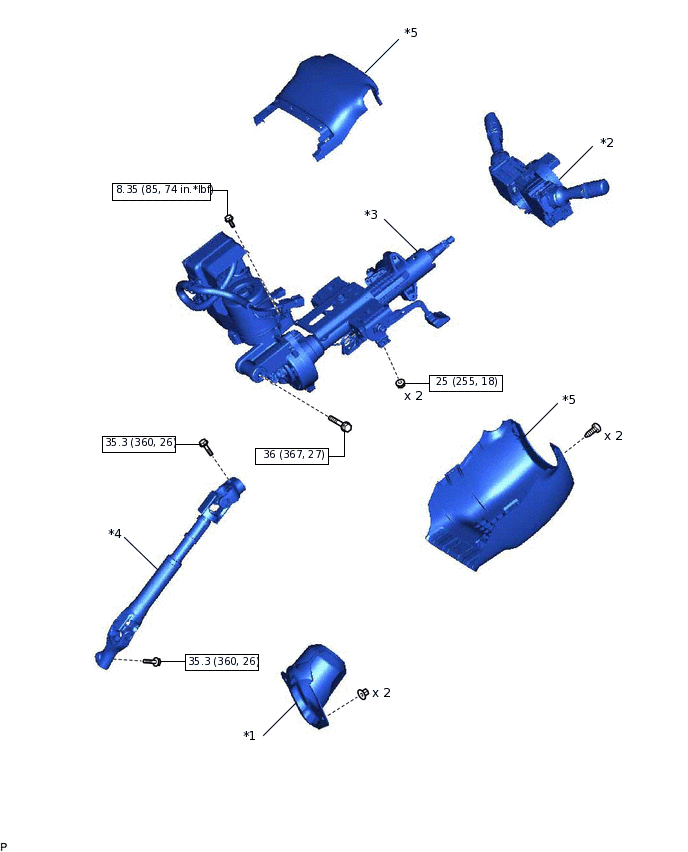

STEERING COLUMN ASSEMBLY COMPONENTS

*1	COLUMN HOLE COVER SILENCER SHEET	*2	COMBINATION SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
*3	ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY	*4	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*5	STEERING COLUMN COVER	-	-
	Specified torque: Nm (kgfcm, ft.*lbf)	-	-

*A	for RHD	-	-

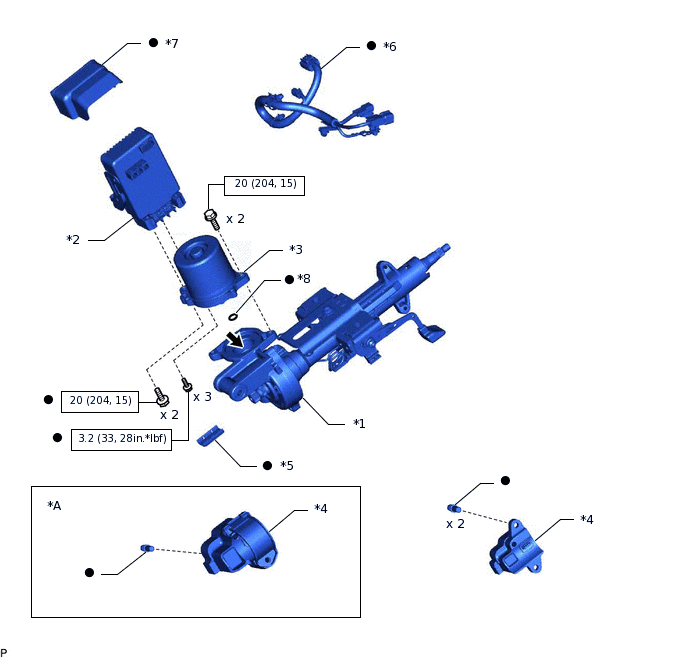

*1	ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY	*2	POWER STEERING ECU ASSEMBLY
*3	POWER STEERING MOTOR ASSEMBLY	*4	STEERING LOCK ACTUATOR ASSEMBLY
*5	POWER STEERING ECU PROTECTOR	*6	ECU WIRE SUB-ASSEMBLY
*7	POWER STEERING ECU PROTECTOR	*8	O-RING
	Specified torque: Nm (kgfcm, ft.*lbf)	●	Non-reusable part
	GREASE	-	-

*A

for RHD

-

*1

ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY

*2

POWER STEERING ECU ASSEMBLY

*3

POWER STEERING MOTOR ASSEMBLY

*4

STEERING LOCK ACTUATOR ASSEMBLY

*5

POWER STEERING ECU PROTECTOR

*6

ECU WIRE SUB-ASSEMBLY

*7

POWER STEERING ECU PROTECTOR

*8

O-RING

Specified torque: N*m (kgf*cm, ft.*lbf)

●

Non-reusable part

GREASE

-
