SFI SYSTEM
| *A | LHD Models | *B | RHD Models |
| *1 | BRAKE ACTUATOR ASSEMBLY
|
*2 | PURGE VSV |
| *3 | MASS AIR FLOW METER SUB-ASSEMBLY
|
*4 | AIR FUEL RATIO SENSOR |
| *5 | FAN WITH MOTOR ASSEMBLY
|
*6 | ECM |
| *7 | HEATED OXYGEN SENSOR | *8 | PARK/NEUTRAL POSITION SWITCH ASSEMBLY |
| *9 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY
|
- | - |
| *A | Models with Tumble Control System | - | - |
| *1 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (EXHAUST) | *2 | IGNITION COIL ASSEMBLY |
| *3 | CAMSHAFT POSITION SENSOR (EXHAUST) | *4 | ENGINE COOLANT TEMPERATURE SENSOR |
| *5 | FUEL INJECTOR ASSEMBLY | *6 | KNOCK CONTROL SENSOR |
| *7 | CRANK POSITION SENSOR | *8 | ACIS VALVE ACTUATOR |
| *9 | VACUUM SWITCHING VALVE ASSEMBLY (FOR ACIS) | *10 | INTAKE AIR CONTROL VALVE ACTUATOR
|
| *11 | THROTTLE BODY WITH MOTOR ASSEMBLY
|
*12 | CAMSHAFT POSITION SENSOR (INTAKE) |
| *13 | CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (INTAKE) | - | - |
Figure 1. LHD Models
| *A | Models with Smart Entry and Start System | - | - |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | COMBINATION METER ASSEMBLY |
| *3 | STOP LIGHT SWITCH ASSEMBLY | *4 | DLC3 |
| *5 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *6 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *7 | AIRBAG SENSOR ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

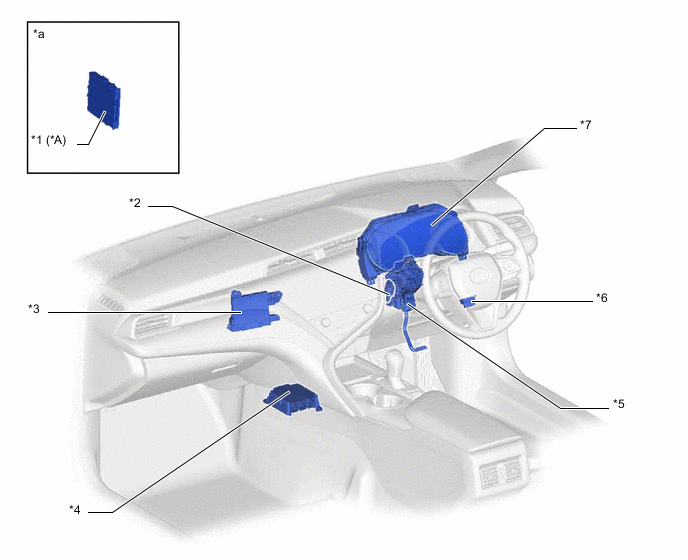

Figure 2. RHD Models
| *A | Models with Smart Entry and Start System | - | - |
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | STOP LIGHT SWITCH ASSEMBLY |
| *3 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *4 | AIRBAG SENSOR ASSEMBLY |
| *5 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *6 | DLC3 |
| *7 | COMBINATION METER ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
