DIGITAL AUDIO BROADCASTING ANTENNA INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

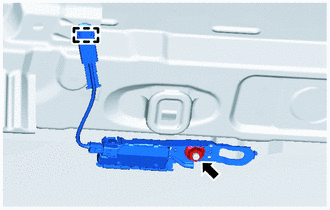

  1. INSTALL NO. 4 ANTENNA CORD SUB-ASSEMBLY

    1. E336751

      Install the No. 4 antenna cord sub-assembly with the nut.

      14 N*m

      143 kgf*cm

      10 ft.*lbf

    2. Attach the clamp.

  2. INSTALL ROOF HEADLINING ASSEMBLY

    Click here

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click hereClick hereClick here).

  4. CHECK SRS WARNING LIGHT

    Click here

  5. INSTALL DECK BOARD ASSEMBLY

    Click here
