CENTER AIRBAG SENSOR ASSEMBLY INSTALLATION

PROCEDURE

  1. INSTALL AIRBAG SENSOR ASSEMBLY

    1. Check that the ignition switch is off.

    2. Check that the cable is disconnected from the negative (-) battery terminal.

      CAUTION:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Using SST, install the airbag sensor assembly with the 3 bolts.

      09961-00950

      without SST [Torque (N*m (kgf*cm, ft.*lbf))]

      9.0 N*m

      92 kgf*cm

      80 in.*lbf

      with SST [Reading of Torque wrench (N*m (kgf*cm, ft.*lbf))]

      5.6 N*m

      57 kgf*cm

      50 in.*lbf

      Note:

      • If the airbag sensor assembly has been dropped, or there are any cracks, dents or other defects in the case or connector, replace it with a new one.

      • When installing the airbag sensor assembly, be careful that the SRS wiring does not interfere with or is not pinched between other parts.

      • When the ignition switch is first turned to ON after the airbag sensor assembly has been replaced, make sure that no one is in the vehicle.

      • This torque value is effective when SST is parallel to the torque wrench.

      • The "with SST" torque value is effective when using SST with a fulcrum length of 150 mm (5.91 in.).

      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 250 mm (9.84 in.).

      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Click hereClick here

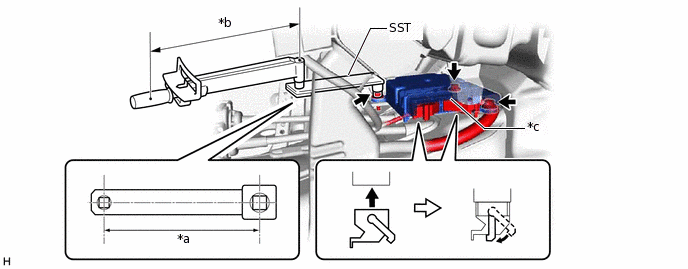

      B369886C01

      *a

      Length of SST 150 mm (5.91 in.)

      *b

      Length of torque wrench 250 mm (9.84 in.)

      *c

      Waterproof Sheet

      -

      -

    4. Connect the connectors to the airbag sensor assembly as shown in the illustration.

      Note:

      When connecting any airbag connector, take care not to damage the airbag wire harness.

    5. Check that the waterproof sheet is properly set.

    6. Check that there is no looseness in the installed parts of the airbag sensor assembly.

    7. Install the carpet to the original position.

    8. Install the 2 clips.

  2. INSTALL FRONT CONSOLE BOX

    Click here

  3. INSTALL REAR CONSOLE BOX ASSEMBLY

    Click here

  4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  6. INSPECT SRS WARNING LIGHT

    Click hereClick here

  7. PERFORM INITIALIZATION

    1. When the airbag sensor assembly (center airbag sensor assembly) is replaced, perform initialization.

      w/ VSC:Click hereClick hereClick here

      w/ Stop and Start System:Click hereClick hereClick here
