STEERING COLUMN ASSEMBLY INSPECTION

CAUTION / NOTICE / HINT

Note:

  • When using a vise, place aluminum plates between the part and vise.

  • When using a vise, do not overtighten it.

PROCEDURE

  1. INSPECT ELECTRIC POWER STEERING COLUMN SUB-ASSEMBLY

    1. Secure the steering column assembly in a vise.

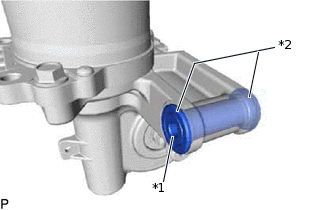

    2. C275629C01

      *1

      Collar

      *2

      Bushing

      Check that the 2 bushings are securely installed to the steering column assembly.

      Tip:

      If the bushings are missing or damaged, replace the steering column assembly with a new one.

    3. Inspect the capsule.

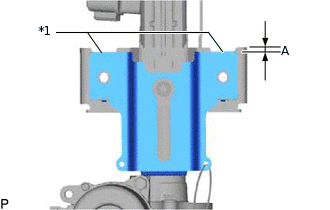

      1. C275630C01

        *1

        Capsule

        Check that the capsule is securely installed to the steering column assembly as shown in the illustration.

        Standard dimension (A)

        4.8 mm (0.189 in.)

        If the capsule is not positioned as specified, replace the steering column assembly with a new one.

      2. Check the capsule for deformation and damage.

        If the capsule is deformed, loose, missing or damaged, replace the steering column assembly with a new one.
