MANUAL TRANSAXLE OIL REPLACEMENT

PROCEDURE

1. REMOVE ENGINE UNDER COVER

   1.

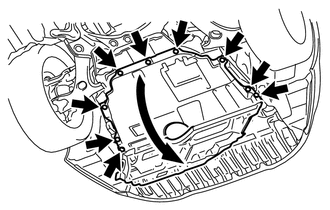

      Remove the 9 clips and fold back the engine under cover.

      Tip:

      It is not necessary to fully remove the engine under cover. Partially remove it so that the oil can be replaced in a later step.

2. DRAIN MANUAL TRANSAXLE OIL

   1.

      Remove the filler plug and gasket.

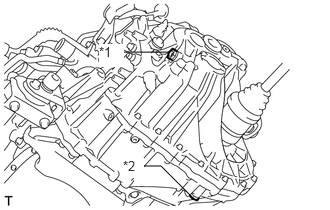

      Table 1. Text in Illustration

      *1	Filler Plug
      *2	Drain Plug

   2. Remove the drain plug and gasket to drain the manual transaxle oil.

   3. Install a new gasket and the drain plug.

      39 N*m

      400 kgf*cm

      29 ft.*lbf

3. ADD MANUAL TRANSAXLE OIL

   1. Add manual transaxle oil.

      Manual Transaxle Oil

      "Toyota Genuine Manual Transmission Gear Oil LV" or "API GL-4 and SAE 75W"

      Capacity (Reference)

      2.1 liters (2.2 US qts, 1.8 Imp. qts)

   2.

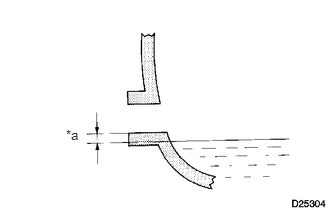

      Check that the oil surface is within 5 mm (0.196 in.) of the bottom of the manual transmission filler plug opening.

      Table 2. Text in Illustration

      *a	0 to 5 mm (0 to 0.196 in.)

   3. Install a new gasket and the transmission filler plug.

      39 N*m

      400 kgf*cm

      29 ft.*lbf

      Note:

      • When adding transaxle oil, make sure the vehicle is level.

      • An excessively large or small amount of oil may cause problems.

      • After adding oil, drive the vehicle and recheck the oil level.

4. INSPECT FOR OIL LEAK

5. INSTALL ENGINE UNDER COVER

   1.

      Install the engine under cover with the 9 clips.
