FRONT SEAT INNER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Driver Side)

    1. Install the seat belt anchor plate.

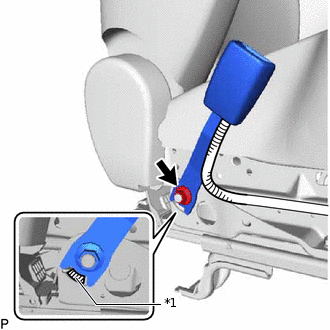

    2. B334882C01

      *1

      Protruding Part

      Install the front seat inner belt assembly with the nut.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

      Note:

      Do not allow the anchor of the front seat inner belt assembly LH to overlap the protruding part of the separate type front seat cushion spring assembly.

    3. Connect each connector and each clamp.

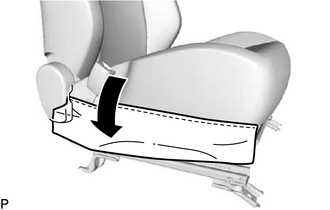

    4. B334879

      Return the separate type front seat cushion cover to its original position.

  2. INSTALL FRONT SEAT INNER BELT ASSEMBLY (for Front Passenger Side)

    1. Install the seat belt anchor plate.

    2. w/o Occupant Detection ECU:

      1. Use the same procedure as for the driver seat.

        Click here

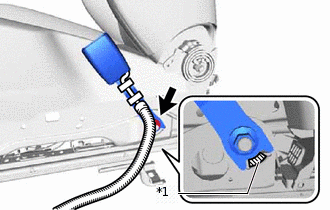

    3. B382809C01

      *1

      Protruding Part

      w/ Occupant Detection ECU:

      1. Install the front seat inner belt assembly with the nut.

        42 N*m

        428 kgf*cm

        31 ft.*lbf

        Note:

        Do not allow the anchor of the front seat inner belt assembly RH to overlap the protruding part of the separate type front seat cushion spring assembly.

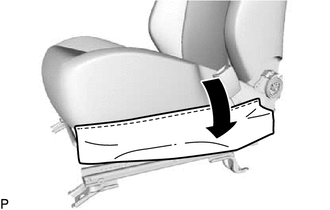

      2. B339088

        Return the separate type front seat cushion cover to its original position.

      3. Connect each connector and each clamp.

      4. Attach the 2 guides and 2 claws to install the front set inner cushion shield RH.

  3. INSTALL FRONT SEAT ASSEMBLY

    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here
