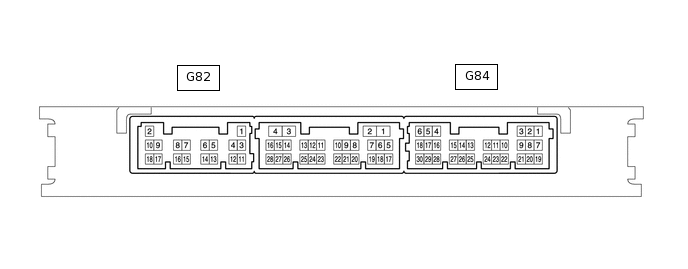

ENTRY AND START SYSTEM(for Start Function) TERMINALS OF ECU

Disconnect the G84 and G82 connectors.

Measure the voltage and resistance according to the value(s) in the table below.

Tip:

Measure the values on the wire harness side with the connector disconnected.


Tester Connection	Input/Output	Wiring Color	Terminal Description	Condition	Specified Condition	Related Data List Item
G82-9 (IG2D) - Body ground	Output	P - Body ground	IG2 signal	20°C (68°F)	130 to 231 Ω	IG2 Relay Monitor (Outside)
G82-18 (STP1) - Body ground	Input	L - Body ground	Stop light switch signal	Brake pedal released → Brake pedal depressed	9 V or higher → 1 V or less	Stop Light Switch1
G82-2 (+B) - G82-11 (E)	Input	W - BR	Power source	Always	11 to 14 V	-
G84-26 (SLP) - G82-11 (E)	Input	B - BR	Steering lock position signal	Always	10 kΩ or higher	Steering Unlock Switch
G84-25 (P) - G82-11 (E)	Input	R - BR	P position signal	Shift lever in P → Shift lever not in P	40 kΩ or higher → 200 Ω or less	Shift P Signal
G82-11 (E) - Body ground	-	BR - Body ground	GND	Always	Below 1 Ω	-
G84-30 (SSW2) - Body ground	Input	G - Body ground	SSW2 contact signal Tip: Backup for SSW1. Behaves the same way as SSW1.	Power switch pushed → Power switch not pushed	Below 1 Ω → 10 kΩ or higher	Start Switch2
G84-28 (SSW1) - Body ground	Input	LG - Body ground	SSW1 contact signal	Power switch pushed → Power switch not pushed	Below 1 Ω → 10 kΩ or higher	Start Switch1
G84-4 (ACCD) - Body ground	Output	R - Body ground	ACC signal	20°C (68°F)	182 to 273 Ω	ACC Relay Monitor
G84-6 (IG1D) - Body ground	Output	P - Body ground	IG1 signal	20°C (68°F)	61 to 91 Ω	IG1 Relay Monitor (Outside)
G82-10 (CUTB) - G82-11 (E)	Input	P - BR	Dark current cut pin*	Always	11 to 14 V	-
G84-27 (SPD) - Body ground	Input	G - Body ground	Vehicle speed signal	Always	30 kΩ or higher	Vehicle Speed Signal

*: In order to prevent the vehicle battery from being depleted when the vehicle is shipped long distances, a fuse that cuts unnecessary electrical load while the vehicle is being shipped is set in the circuit. If the fuse is removed, the circuit becomes open. If the fuse that is between the vehicle battery and terminal CUTB is removed and the circuit is open, the certification ECU (smart key ECU assembly) changes to a certain control mode (example: the transmission of electric waves every 0.25 seconds that form the detection area stops).

Reconnect the G82 and G84 connectors.

Measure the voltage and check for pulses according to the value(s) in the table below.


Tester Connection	Input/Output	Wiring Color	Terminal Description	Condition	Specified Condition	Related Data List Item
G82-9 (IG2D) - G82-11 (E)	Output	P - BR	IG2 signal	Power switch on (ACC) → Power switch on (IG)	1 V or less → 9 V or higher	IG2 Relay Monitor (Outside)
G82-18 (STP1) - G82-11 (E)	Input	L - BR	Stop light switch signal	Brake pedal released → Brake pedal depressed	1 V or less → 9 V or higher	Stop Light Switch1
G84-26 (SLP) - G82-11 (E)	Input	B - BR	Steering lock position signal	Steering locked → Steering unlocked	11 to 14 V → 1.2 V or less	Steering Unlock Switch
G84-29 (SLR+) - G82-11 (E)	Output	V - BR	Steering lock motor operation command signal (Steering lock motor operation permission signal sent from the certification ECU (smart key ECU assembly))	When a door is opened, the steering lock motor will be operated if all of the following conditions are met: When a door is opened, the steering lock motor will be operated if all of the following conditions are met:	Pulse generation (See waveform 1)	-
G84-25 (P) - G82-11 (E)	Input	R - BR	P position signal	Shift lever in P → Shift lever not in P	9 V or higher → 2.7 V or less	Shift P Signal
G84-30 (SSW2) - G82-11 (E)	Input	G - BR	SSW2 contact signal Tip: Backup for SSW1. Behaves the same way as SSW1.	Power switch not pushed → Power switch pushed	9 V or higher → 1 V or less	Start Switch2
G84-28 (SSW1) - G82-11 (E)	Input	LG - BR	SSW1 contact signal	Power switch not pushed → Power switch pushed	9 V or higher → 1 V or less	Start Switch1
G84-4 (ACCD) - G82-11 (E)	Output	R - BR	ACC signal	Power switch off → Power switch on (ACC)	1 V or less → 8.5 V or higher	ACC Relay Monitor
G84-6 (IG1D) - G82-11 (E)	Output	P - BR	IG1 signal	Power switch on (ACC) → Power switch on (IG)	1 V or less → 9 V or higher	IG1 Relay Monitor (Outside)
G84-27 (SPD) - G82-11 (E)	Input	G - BR	Vehicle speed signal	Vehicle being driven at approx. 5 km/h (3 mph)	Pulse generation (See waveform 2)	Vehicle Speed Signal

Tip:

The waveform of the steering lock actuator motor stopped can be checked without performing any particular operation.
The waveform of the steering lock actuator motor operating can be checked if either of the following operations is performed:
- To unlock the steering, bring the electrical key transmitter sub-assembly into the cabin and turn the power switch on (ACC) or on (IG).
- To lock the steering, open a door with the power switch off and the shift lever in P.

Using an oscilloscope, check the waveform of the ECU.

Tip:

The oscilloscope waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.

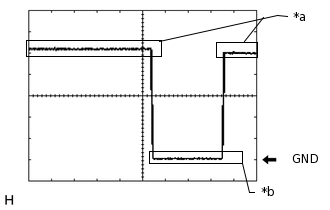

*a	Steering lock motor not operating
*b	Steering lock motor operating

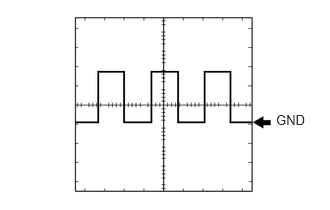

Waveform 1


Item	Content
Tester Connection	G84-29 (SLR+) - G82-11 (E)
Tool Setting	2 V/DIV., 200 ms./DIV.
Vehicle Condition	Steering lock motor stopped → Steering lock motor operating → Steering lock motor stopped*

Tip:

*: When all of the following conditions are met, open any of the doors to operate the steering lock motor.

The power switch is off.
The shift lever is in P.
While carrying the electrical key transmitter sub-assembly, the power switch is turned on (IG) and the steering is unlocked.

Waveform 2


Item	Content
Tester Connection	G84-27 (SPD) - G82-11 (E)
Tool Setting	5 V/DIV., 20 ms./DIV.
Vehicle Condition	Power switch on (IG), vehicle being driven at approx. 5 km/h (3 mph)

Tip:

The wavelength becomes shorter as the vehicle speed increases.
