FRONT DISC BRAKE PAD(for 17 inch Front Disc Brake) REPLACEMENT

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The following procedure is for the LH side.

Note:

  • When the brake pedal is first depressed after replacing the brake pads or pushing back the disc brake piston, DTC C1214 may be output. As there is no malfunction, clear the DTCs.

  • While the auxiliary battery is connected, even if the power switch is off, the brake control system activates when the brake pedal is depressed or the door courtesy switch is turned on. Therefore, even if only brake pads are to be removed and installed, be sure to perform the Disable Brake Control procedure and disconnect the cable from the negative (-) terminal of the auxiliary battery before beginning work.

  • After replacing the disc brake pads, the clearance between the disc brake pads and front discs becomes larger and the brake pedal feel becomes softer. Therefore, after replacing the disc brake pads, depress the brake pedal several times and check the clearance and brake pedal feel.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. DISABLE BRAKE CONTROL

    Click here

  4. REMOVE FRONT WHEEL

    Click here

  5. DRAIN BRAKE FLUID

    Note:

    Wash off brake fluid immediately if it comes in contact with any painted surface.

  6. REMOVE FRONT DISC BRAKE PAD

    1. C308417

      Remove the 2 bolts, steering knuckle and absorber bracket from the flexible hose bracket.

    2. C308412C02

      *a

      Hold

      *b

      Turn

      Hold the front disc brake cylinder slide pin and remove the bolt.

    3. Lift up the disc brake cylinder assembly LH.

      CAUTION:

      When removing the front disc brake pad, make sure that your hands, etc., do not get caught in the disc brake cylinder assembly LH.

      Note:

      • Do not bend or damage the front flexible hose.

      • Remove the disc brake cylinder assembly while holding both of the brake pads because the anti-squeal springs may fall off the brake pads.

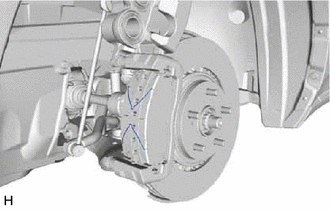

    4. C308413

      Remove the 2 anti-squeal springs.

      CAUTION:

      When removing the anti-squeal spring and front disc brake pad, make sure that your hands, etc., do not get caught in the disc brake cylinder assembly.

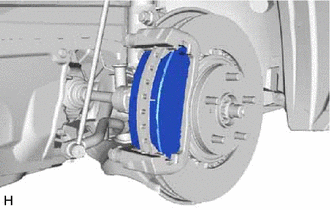

    5. C306283

      Remove the 2 front disc brake pads from the front disc brake cylinder mounting LH.

  7. REMOVE FRONT ANTI-SQUEAL SHIM KIT

    1. Remove the 2 No. 1 anti-squeal shims and 2 No. 2 anti-squeal shims from the front disc brake pads.

  8. REMOVE NO. 1 PAD WEAR INDICATOR PLATE

    1. C306284

      Using a screwdriver, remove the 2 No. 1 pad wear indicator plates from the 2 front disc brake pads as shown in the illustration.

  9. INSTALL NO. 1 PAD WEAR INDICATOR PLATE

    1. C306303

      Install the 2 new No. 1 pad wear indicator plates to the 2 front disc brake pads.

      Note:

      Install the No. 1 pad wear indicator plates in the correct positions and directions.

  10. INSTALL FRONT ANTI-SQUEAL SHIM KIT

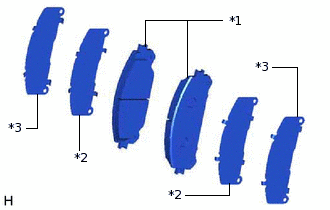

    1. C308439C02

      *1

      Front Disc Brake Pad

      *2

      No. 1 Anti-squeal Shim

      *3

      No. 2 Anti-squeal Shim

      Install the 2 No. 1 anti-squeal shims and 2 No. 2 anti-squeal shims to the each pad.

      Note:

      • When replacing a worn pad, the shins must be replaced together with the pad.

      • Install the shims in the correct positions and direction as shown in the illustration.

  11. INSTALL FRONT DISC BRAKE PAD

    1. C308428N01

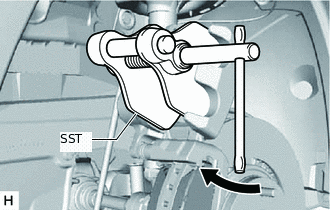

      Using SST, push back the front disc brake piston.

      Note:

      Do not forcibly install the piston into the disc brake cylinder assembly LH.

      09719-77020

    2. Lift up the disc brake cylinder assembly LH and install the 2 front disc brake pads to the front disc brake cylinder mounting LH.

      CAUTION:

      When installing the front disc brake pad and anti-squeal spring, make sure that your hands, etc., do not get caught in the disc brake cylinder assembly.

      Note:

      Make sure the friction surfaces of the front disc brake pad and front disc are free of oil and grease.

    3. Install the 2 front disc brake pads with the 2 No. 1 anti-squeal shims to the front disc brake cylinder mounting LH.

    4. C306306

      Install the 2 anti-squeal springs to the front disc brake pads.

      Note:

      • When replacing the front disc brake pads with new ones, make sure to replace the anti-squeal springs at the same time.

      • Be sure to install the anti-squeal springs into the front disc brake pad installation holes as far as they will go.

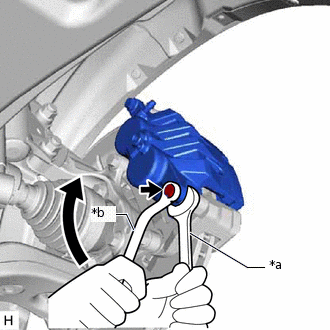

    5. C308416C02

      *a

      Hold

      *b

      Turn

      Hold the front disc brake cylinder slide pin and install the disc brake cylinder assembly LH to the disc brake cylinder mounting LH with the bolt.

      34.3 N*m

      350 kgf*cm

      25 ft.*lbf

      Note:

      • Install the disc brake cylinder assembly while holding both of the front disc brake pads because the anti-squeal springs may fall off the front disc brake pads.

      • Be sure that the anti-squeal springs are installed to the front disc brake pads.

    6. Install the flexible hose bracket to the steering knuckle and absorber bracket with the 2 bolts.

      Click here

    7. Depress the brake pedal several times.

  12. ADD BRAKE FLUID

    Click here

  13. INSTALL FRONT WHEEL

    Click here

  14. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    1. Connect the cable to the negative (-) auxiliary battery terminal.

      Click here

    2. Connect the reservoir level switch connector.

    3. Clear the DTCs.

      Click here

  15. INSTALL BATTERY SERVICE COVER

    Click here

  16. INSTALL DECK BOARD ASSEMBLY

    Click here
