INTAKE SYSTEM ON-VEHICLE INSPECTION

PROCEDURE

1. INSPECT INTAKE SYSTEM

   Tip:

   Perform "Inspection After Repair" after repairing air leaks in the intake system.

   • w/ EGR System:

     Click here

   • w/o EGR System:

     Click here

   • w/ Canister Pump Module:

     Click here

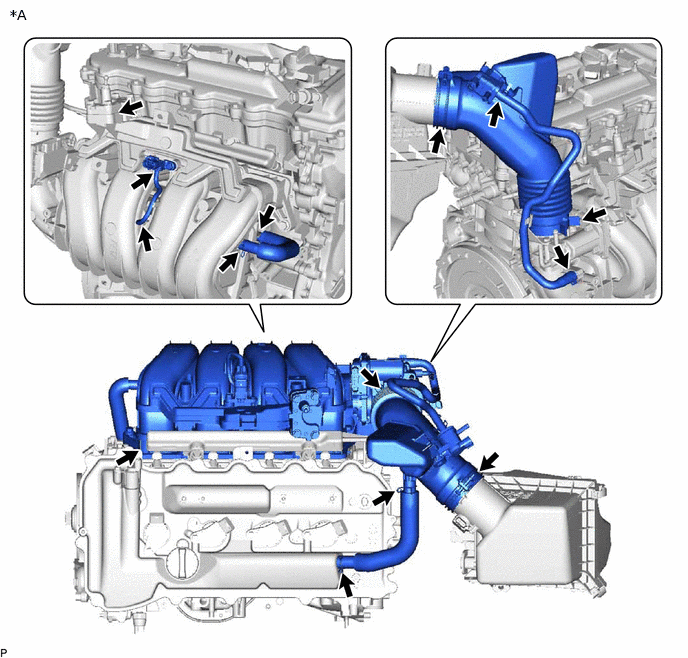

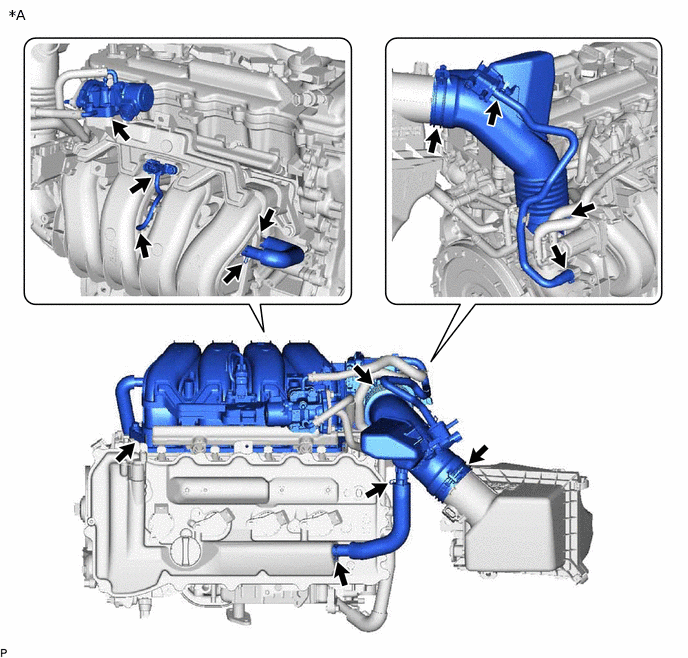

   1. Check that there are no vacuum leaks at the points shown in the illustration.



      *A

      w/ EGR System

      -

      -



      *A

      w/o EGR System

      -

      -
