LANE DEPARTURE ALERT SYSTEM

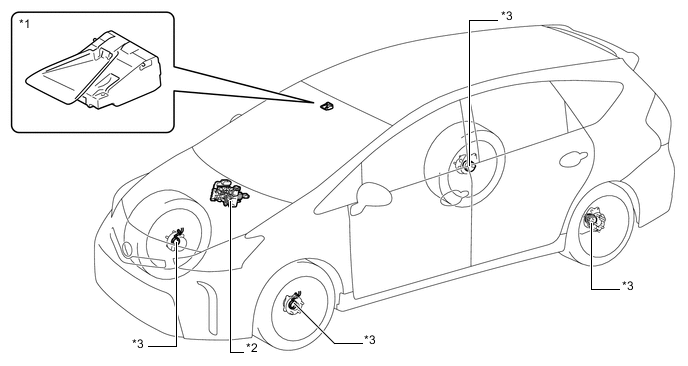

| *1 | Lane Departure Warning Camera | *2 | Brake Booster with Master Cylinder Assembly - Skid Control ECU |
| *3 | Speed Sensor | - | - |

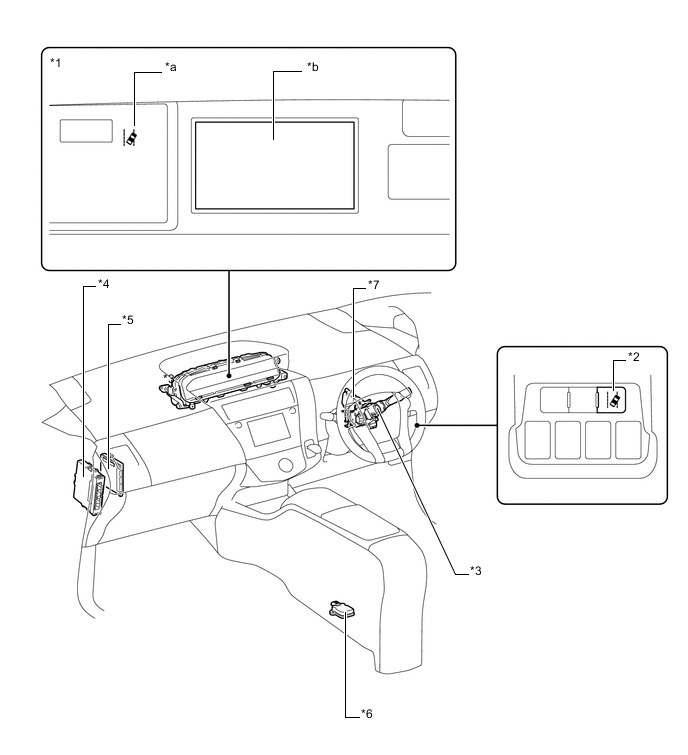

| *1 | Combination Meter Sub-assembly | *2 | Integration Control and Panel Assembly - LDA main Switch |
| *3 | Headlight Dimmer Switch Assembly | *4 | Power Management Control ECU |
| *5 | Main Body ECU (Multiplex Network Body ECU) | *6 | Yawrate Sensor |
| *7 | Driving Support ECU Assembly | - | - |
| *a | LDA Indicator Light | *b | Multi-information Display |
