NOISE FILTER INSTALLATION

PROCEDURE

1. INSTALL RADIO SETTING CONDENSER

   1.

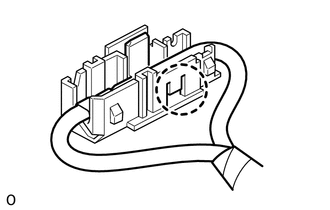

      Attach the claw to install a new terminal cover to the wire harness.

      Note:

      • Make sure to hold the crimping side of the terminal when installing the wire harness to the terminal cover.

      • Make sure not to bend the exposed wire when installing the wire harness to the terminal cover.

      • Do not use excessive force when inserting the wire harness into the terminal cover.

      • If the terminal cover has been deformed at installation, replace the terminal and terminal cover with new ones.

   2.

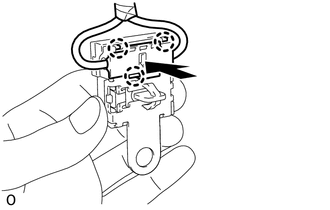

      Attach the 3 claws to install the new terminal cover with wire harness to a new condenser.

      Note:

      • Do not use excessive force when inserting the terminal cover into the condenser.

      • If the terminal cover has been deformed at installation, replace the terminal, terminal cover and condenser with new ones.

   3. Attach the clamp to temporarily install a new radio setting condenser with wire harness.

   4. Install the new radio setting condenser with the bolt.

      4.5 N*m

      46 kgf*cm

      40 in.*lbf

2. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

   Click here

3. INSTALL DECK TRIM SERVICE HOLE COVER

   Click here

4. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

   Click here

5. INSTALL REAR DOOR SCUFF PLATE LH

   Click here

6. INSTALL REAR SEAT ASSEMBLY

   Click here

7. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

   Click here

8. INSTALL REAR DECK TRIM COVER (w/ Full Size Spare Tire)

   Click here

9. INSTALL REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Tire)

   Click here

10. INSTALL DECK FLOOR BOX LH

    Click here

11. INSTALL DECK TRIM SIDE COVER BASE LH

    Click here

12. INSTALL REAR NO. 3 FLOOR BOARD

    Click here

13. INSTALL DECK BOARD ASSEMBLY

    Click here

14. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

15. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here
