WINDSHIELD / WINDOW GLASS SYSTEM

A004GNAE03

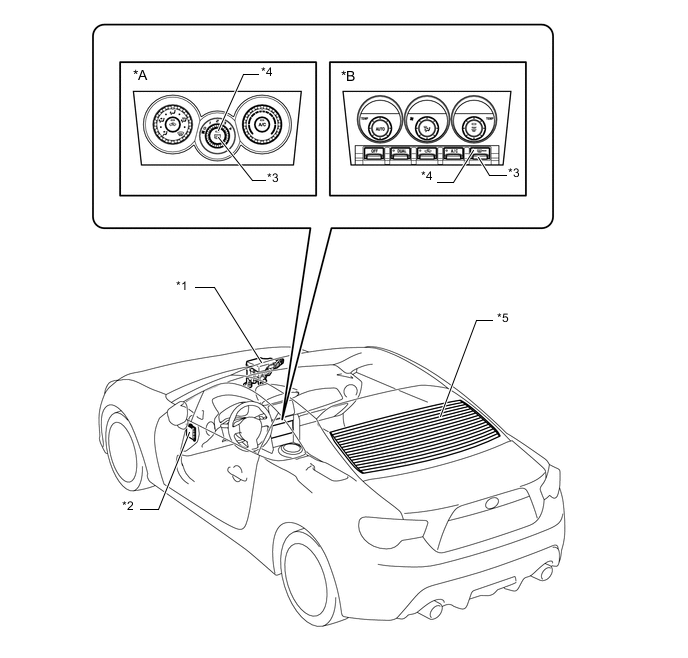

Text in Illustration (Window Defogger System: )
*A Models with Manual Air Conditioning *B Models with Automatic Air Conditioning
*1

  • Engine Room Relay Block


    • Rear Window Defogger Relay

 *2 Main Body ECU (Network Gateway ECU)
*3 Rear Window Defogger Switch *4 Operating Status Indicator Light
*5

  • Back Window Glass


    • Rear Window Defogger Wire

 - -
