NAVIGATION SYSTEM Panel Switches do not Function

DTC Code DTC Name
Panel Switches do not Function

PROCEDURE

  1. CHECK PANEL SWITCH

    1. Check for foreign matter on the display.

      OK

      The display is clean.

    Result

    Proceed to

    OK

    NG
    NG

    REMOVE ANY FOREIGN MATTER FOUND

    OK

  2. CHECK PANEL SWITCH (OPERATION CHECK)

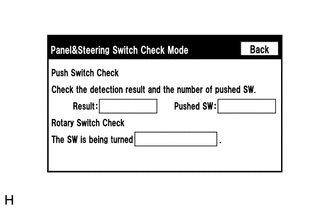

    1. E225786

      Enter the "Panel & Steering Switch Check Mode" screen. Refer to Check Panel & Steering Switch in Operation Check.

      Click here

    2. Operate the abnormal switch and check if the switch status is correctly displayed.

      OK

      The switch status is correctly displayed as operated.

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE RADIO AND DISPLAY RECEIVER ASSEMBLY

    Click here

    NG

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE
