ROOM LIGHT(for Front) INSPECTION

PROCEDURE

  1. INSPECT MAP LIGHT ASSEMBLY

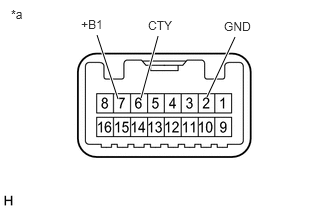

    E270005E04

    1. Check the resistance.

      1. Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Switch Condition

        Specified Condition

        7 (+B1) - 2 (GND)

        Spot light switch off

        10 kΩ or higher

        Spot light switch on

        Below 1 Ω

        7 (+B1) - 6 (CTY)

        Not door position

        10 kΩ or higher

        Door position

        Below 1 Ω

        If the result is not as specified, replace the map light assembly.

        Table 1. Text in Illustration

        *a

        Component without harness connected

        (Map Light Assembly)
