WIPER AND WASHER SYSTEM(w/o Rain Sensor) PARTS LOCATION

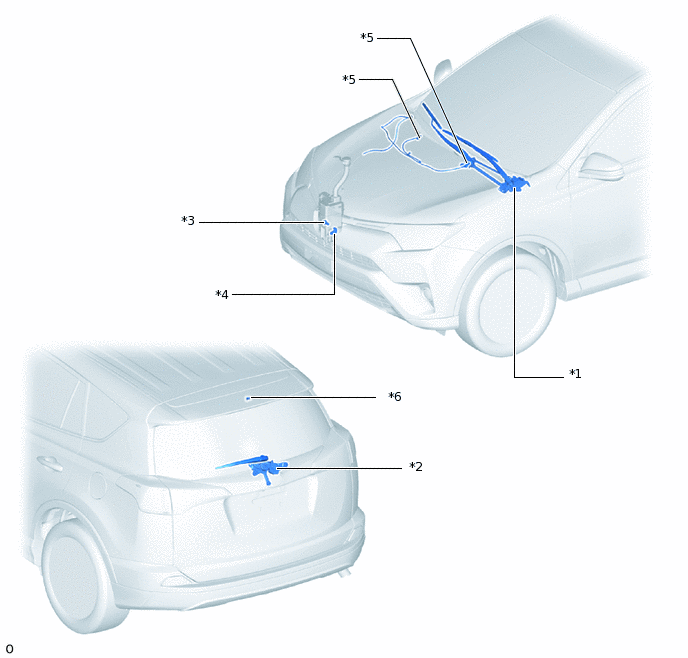

ILLUSTRATION
*1 |
WINDSHIELD WIPER MOTOR ASSEMBLY |
*2 |
REAR WIPER MOTOR ASSEMBLY |
*3 |
LEVEL WARNING SWITCH ASSEMBLY |
*4 |
WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY |
*5 |
WASHER NOZZLE SUB-ASSEMBLY |
*6 |
REAR WASHER NOZZLE SUB-ASSEMBLY |

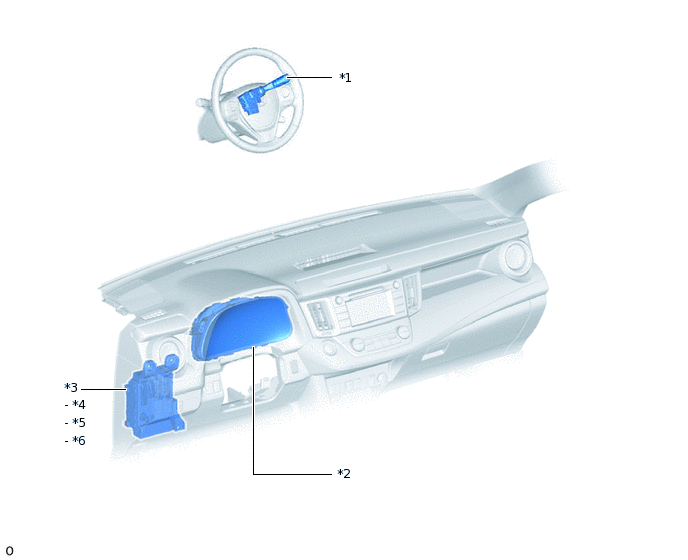

ILLUSTRATION
*1 |
WINDSHIELD WIPER SWITCH ASSEMBLY |
*2 |
COMBINATION METER ASSEMBLY |
*3 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
*4 |
WIP FR FUSE |
*5 |
WIP RR FUSE |
*6 |
WSH FUSE |
