REAR BRAKE REASSEMBLY

CAUTION / NOTICE / HINT

PROCEDURE

1. TEMPORARILY INSTALL REAR DISC BRAKE BLEEDER PLUG

   1. Temporarily install the rear disc brake bleeder plug to the rear disc brake cylinder assembly LH.

      Tip:

      The rear disc brake bleeder plug will be tightened to the torque specification in the "Bleed Brake Line" procedures.

2. INSTALL REAR DISC BRAKE BLEEDER PLUG CAP

3. INSTALL PISTON SEAL

   1.

      Lithium soap base glycol grease

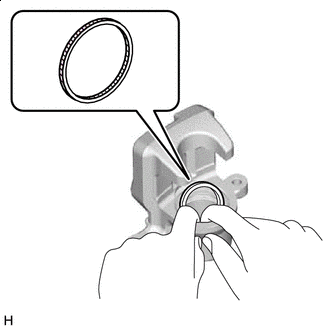

      Apply a light coat of lithium soap base glycol grease to the entire inner and outer circumference of a new piston seal.

   2. Install the piston seal to the rear disc brake cylinder assembly LH.

      Note:

      Make sure the piston seal is securely installed to the groove of the rear disc brake cylinder assembly.

4. INSTALL REAR DISC BRAKE PISTON

   1.

      Lithium soap base glycol grease

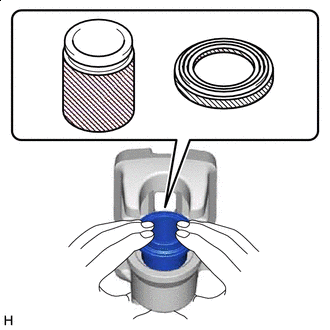

      Apply a light coat of lithium soap base glycol grease to the entire inner and outer circumference of a new cylinder boot.

   2. Apply a light coat of lithium soap base glycol grease to the entire outer circumference of the rear disc brake piston where it contacts the rear disc brake cylinder assembly LH.

   3. Install the cylinder boot to the rear disc brake piston.

      Note:

      Do not forcibly install the brake piston to the rear disc brake cylinder assembly LH.

   4. Install the rear disc brake piston to the rear disc brake cylinder assembly LH.

5. INSTALL CYLINDER BOOT

   1.

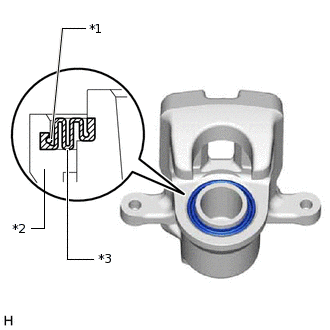

      *1	Set Ring
      *2	Cylinder
      *3	Cylinder Boot

      Install the cylinder boot to the rear disc brake cylinder assembly LH.

      Note:

      • Install the boot securely to the grooves of the rear disc brake cylinder assembly LH and brake piston.

      • Be careful not to damage the cylinder boot.

   2. Using a screwdriver, install a new set ring.

      Tip:

      Tape the screwdriver tip before use.

      Note:

      Be careful not to damage the cylinder boot.
