REAR AXLE HUB COMPONENTS

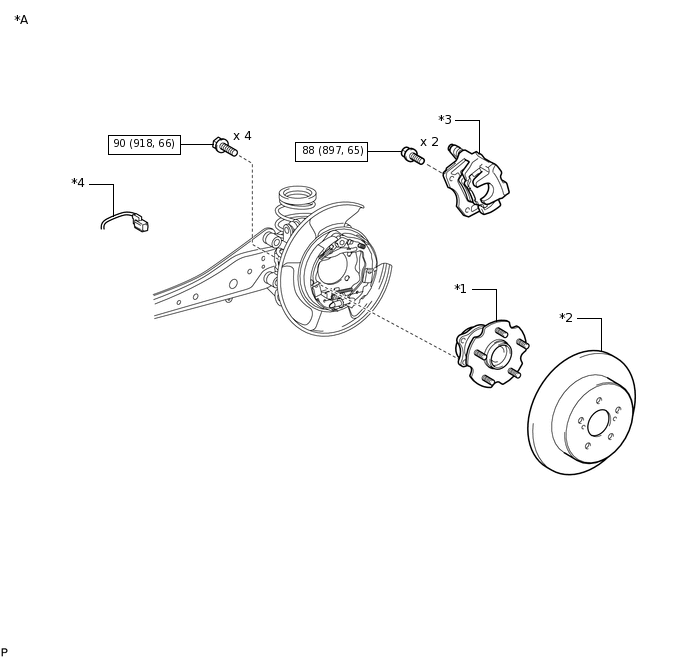

ILLUSTRATION

C348449C01

*A

for 2WD

-

-

*1

REAR AXLE HUB AND BEARING ASSEMBLY LH

*2

REAR DISC

*3

REAR DISC BRAKE CALIPER ASSEMBLY LH

*4

SKID CONTROL SENSOR WIRE
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

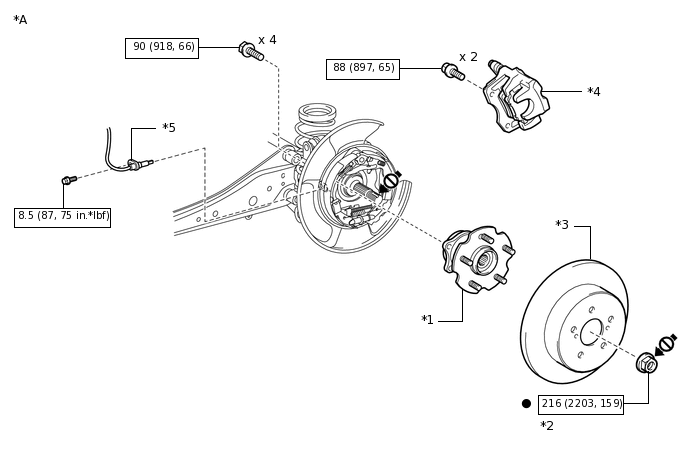

ILLUSTRATION

C348436C01

*A

for AWD

-

-

*1

REAR AXLE HUB AND BEARING ASSEMBLY LH

*2

REAR AXLE SHAFT NUT LH

*3

REAR DISC

*4

REAR DISC BRAKE CALIPER ASSEMBLY LH

*5

REAR SPEED SENSOR LH

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part
V103638

Do not apply lubricants to the threaded parts

-

-
