FUNCTION OF MAIN COMPONENTS
The main components in the dynamic radar cruise control system have the following functions:
| Component | Function | |
|---|---|---|
| Cruise Control Main Switch | ON-OFF Button | Turns the cruise control system on and off. |
| MODE Switch | Switches between constant speed control mode and vehicle-to-vehicle distance control mode. | |
| CANCEL Switch | A cancel signal is output to the driving support ECU assembly when this switch is operated. | |
| +RES Switch | Acceleration and resuming of a preset speed can be performed by operating this switch. A signal is output to the driving support ECU assembly when this switch is operated. | |
| -SET Switch | Deceleration function is operated and vehicle speed setting signals are output to the driving support ECU assembly when this switch is operated. | |
| Steering Pad Switch Assembly | Distance Control Switch | While the system is in vehicle-to-vehicle distance control mode, the driver can operate the distance control switch to select the vehicle-to-vehicle distance in 3 levels: long, middle and short. |
| ECM |
|
|
| Stop Light Switch Assembly | Detects the depression of the brake pedal and transmits a signal to the driving support ECU assembly. | |
| Millimeter Wave Radar Sensor Assembly |
|
|
| Driving Support ECU Assembly |
|
|
| Combination Meter Assembly | Radar Cruise Control Indicator Light (Constant Speed Control Mode) |
|
| Radar Cruise Control Indicator Light (Vehicle-to-vehicle Distance Control Mode) |
|
|
| Cruise Control SET Indicator Light | Illuminates when the vehicle speed is set. | |
| Multi Buzzer | If the driving support ECU assembly detects automatic cancel or warning signals while the vehicle is operating under cruise control, this buzzer sounds to inform the driver. | |
| Multi-information Display | During dynamic radar cruise control operation, the multi-information display receives signals from the driving support ECU assembly in order to display the system conditions. | |
| Steering Sensor | Detects the angle and direction of steering and transmits signals to the driving support ECU assembly. | |
| Airbag ECU Assembly | Detects the yaw rate of the vehicle and transmits signals to the driving support ECU assembly. | |
| Brake Actuator Assembly
|
|
|
| Throttle Body with Motor Assembly | Throttle Control Motor | Adjusts the throttle valve opening angle in accordance with signals from the ECM. |
| Throttle Position Sensor | Detects the throttle valve opening angle and outputs it to the ECM. | |
| Skid Control Buzzer Assembly | Sounds a buzzer when it receives a signal from the millimeter wave radar sensor assembly to alert the driver that the distance between vehicles is short. | |
| Accelerator Pedal Sensor Assembly | Detects the accelerator pedal depression degree and outputs it to the ECM. | |
| Parking Brake ECU Assembly | During stop retention control, when this ECU detects that the vehicle is parked through a driver side courtesy light switch signal or driver side seat belt buckle switch signal, or an electric parking brake switch assembly signal is input, the ECU operates the parking brake, then the system control is canceled. | |
| Integration Control and Panel Assembly | Parking Brake Switch | Outputs a parking brake application signal to the electric parking brake ECU assembly. |
| Speed Sensor | Detects the wheel speed and transmits signals to the skid control ECU. | |
| Park/Neutral Position Switch Assembly | Converts the shift position into an electrical signal and outputs it to the ECM. | |
| VSC OFF Switch | Detects the VSC OFF signal and outputs it to the skid control ECU. | |
| Transmission Floor Shift Assembly | Transmission Control Switch | While the vehicle is being driven in M mode, this switch outputs a signal to the ECM when the shift lever is moved toward "+" or "-". |
| Transmission Shift Switch Assembly*1 | While the vehicle is being driven in D mode or M mode, this switch outputs a signal to the ECM when the switch is pulled to "+" or "-". | |
| Engine Stop and Start ECU*2 | Sends either an engine stop or restart signal to the ECM according to the signals from each sensor and switch. | |
*1: Models with shift paddle
*2: Models with stop and start system
SYSTEM CONTROL
The driving support ECU assembly, millimeter wave radar sensor assembly and ECM control this system.
The combination meter assembly informs the driver of the control conditions.
Constant speed control mode is controlled by the ECM, which outputs signals to the throttle control motor.
Vehicle-to-vehicle distance control mode is controlled by the millimeter wave radar sensor assembly and driving support ECU assembly. Thus, the signals are output to the actuators and the ECU while exchanging data as indicated below.
| *1 | Millimeter Wave Radar Sensor Assembly |
| *2 | Driving Support ECU Assembly |
| *3 | CAN (Local Bus) |
| *4 | CAN (Sub Bus 2) |
FUNCTION
Control of Dynamic Radar Cruise Control System Varies Depending on Mode
A: Constant speed control mode
B: Vehicle-to-vehicle distance control mode
C: Vehicle-to-vehicle distance control mode (models with full-speed range following function)
| Function | Outline | Mode | ||
|---|---|---|---|---|
| A | B | C | ||
| Constant Speed Control | Controls the motive force through the driving support ECU assembly via the ECM and the skid control ECU in order to adjust the vehicle speed to the set speed. | ○ | ○ | ○ |
| Deceleration Control | Effects engine and brake control in order to decelerate the vehicle so that the vehicle-to-vehicle distance between this vehicle and the vehicle ahead equals the set distance. | - | ○ | ○ |
| Follow-up Control | After effecting deceleration control, the vehicle follows the vehicle ahead in order to maintain the proper vehicle-to-vehicle distance in accordance with the vehicle speed. | - | ○ | ○ |
| Acceleration Control | Accelerates the vehicle in order to attain the set vehicle speed if the vehicle ahead or this vehicle has changed lanes. | - | ○ | ○ |
| Stop Control | Detects if the vehicle ahead has stopped, performs motive force control and stops the vehicle while maintaining proper vehicle-to-vehicle distance. | - | - | ○ |
| Stop Retention Control | Judges if the vehicle is stopped, performs brake control and keeps the vehicle stopped through the brake hold function. | - | - | ○ |
| Start Control | Detects that the vehicle ahead starts moving again, displays the message on the multi-information display to urge the driver to perform the start-off operation (to operate the cruise control main switch or depress the accelerator pedal), and resumes follow-up control after the vehicle is started. | - | - | ○ |
| Set Control | While this system fulfills the following conditions and the cruise control main switch is pressed to the -SET side and released, the driving support ECU assembly stores the vehicle speed, illuminates the cruise control SET indicator light on the multi-information display and maintains the vehicle constantly at that speed.
|
○ | ○ | ○ |
|
○ | - | - | |
|
- | ○ | ○ | |
| Low Speed Limit Control | The low speed limit is approx. 40 km/h (25 mph). If the vehicle speed drops below that speed while running under the cruise control, the cruise control will be canceled automatically. It is not canceled when the vehicle is running in mode B and there is a vehicle ahead. However, the set vehicle speed in the memory is kept. | ○ | ○ | - |
| COAST (-) Switch Control | While the cruise control main switch is held to the -SET side, the vehicle speed and the set vehicle speed change in accordance with the mode as follows: | ○ | ○ | ○ |
|
○ | - | - | |
|
- | ○ | ○ | |
| Tap-down Control | When the cruise control main switch is pushed momentarily (approx. 0.6 sec.) to the -SET side, the vehicle speed and the vehicle setting speed change in accordance with the mode as follows: | ○ | ○ | ○ |
|
- | ○ | ○ | |
|
○ | - | - | |
| ACC (+) Switch Control | When the cruise control main switch is pushed to the +RES side and held, the vehicle speed and the vehicle setting speed change as follows, in accordance with the mode. | ○ | ○ | ○ |
|
○ | - | - | |
However, only the vehicle setting speed will change during follow-up control. |
- | ○ | ○ | |
| Tap-up Control | When the cruise control main switch is pushed momentarily (approx. 0.6 sec.) to the +RES side, the vehicle speed and the vehicle setting speed change in accordance with the mode as follows: | ○ | ○ | ○ |
|
- | ○ | ○ | |
|
○ | - | - | |
| RES Switch Control | If the vehicle speed is above the low speed limit, the cruise control resumes operation (subsequently pushes the cruise control main switch assembly to the +RES side) to reach the vehicle speed that was set at the time the driver canceled cruise control. | ○ | ○ | ○ |
| Even if the vehicle speed drops below the low speed limit, resumption can be performed when the vehicle speed increases to above the low speed limit. However, resumption can be performed even if the vehicle speed is below the low speed limit when the vehicle is running in mode B and there is a vehicle ahead. | - | - | ○ | |
| If the vehicle ahead changes driving lanes during follow-up control, the vehicle speed is gradually increased to the set vehicle speed. At this time, the vehicle speed can be increased promptly by pushing the cruise control main switch to the +RES side. | - | ○ | ○ | |
| After the vehicle ahead has started running again under stop retention control and then the message that urges the driver to perform the start-off operation has been displayed, when the cruise control main switch is pushed to the +RES side, follow-up control is resumed and the vehicle can be accelerated up to the set speed. | - | - | ○ | |
| Manual Cancel Control | If any of the following signals are sent to the driving support ECU assembly, the cruise control is canceled accordingly:
|
○ | ○ | ○ |
| Automatic Cancel Control | When an automatic cancel signal is sent to the driving support ECU assembly, the cruise control operation is canceled. At this time, the style of the warning to the driverand the control resumption condition varies in accordance with the cancel signal.
|
○ | ○ | ○ |
| Mode Switching Control |
|
○ | ○ | ○ |
| Other Control Cancellation Conditions | If any of the following conditions occur during cruise control driving, the cruise control is canceled. However, the set speed remains in the memory:
|
○ | ○ | ○ |
Tech Tips
○: Available
-: Not available
*1: Models for Europe
*2: Except models for Europe
*3: Models with shift paddle

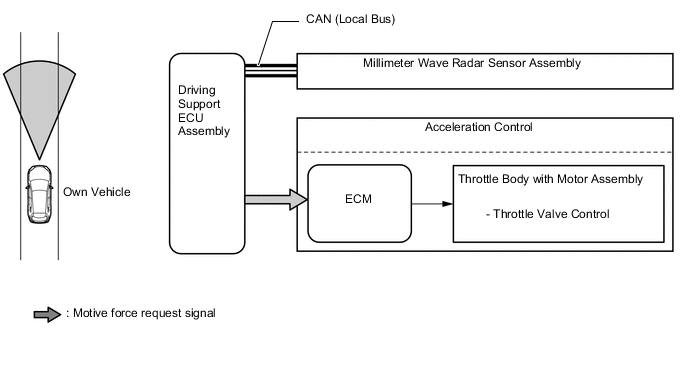

Constant Speed Control Mode
The driving support ECU assembly compares the actual vehicle speed (wheel speed signal from the skid control ECU) with the set speed under constant speed control in each control mode. When the actual vehicle speed differs from the set speed, the driving support ECU assembly calculates the motive force required to achieve the set speed and transmits motive force request signals to the ECM, thus controlling the motive force optimally and adjusting the vehicle speed to the set speed.

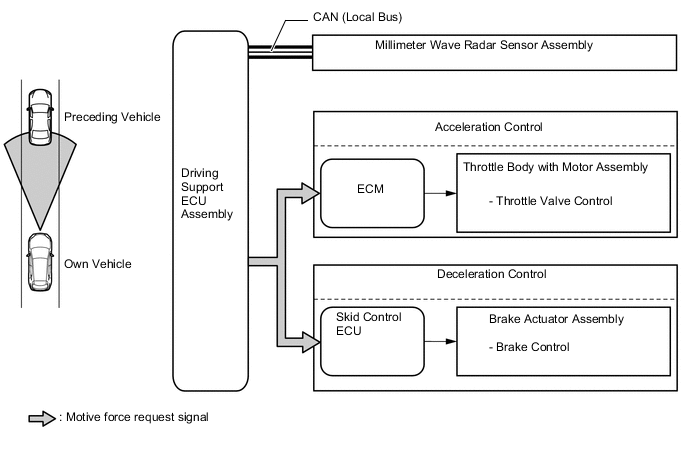

Vehicle-to-vehicle Distance Control Mode

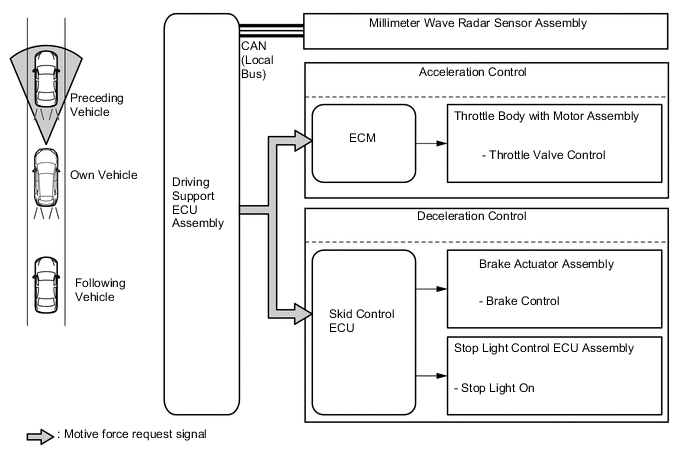

In vehicle-to-vehicle distance control mode, the driving support ECU assembly performs deceleration control function, follow-up control function, acceleration control function, stop control function*, stop retention control function* or start control function* based on the information about the vehicle ahead transmitted from the millimeter wave radar sensor assembly
*: Models with full-speed range following function

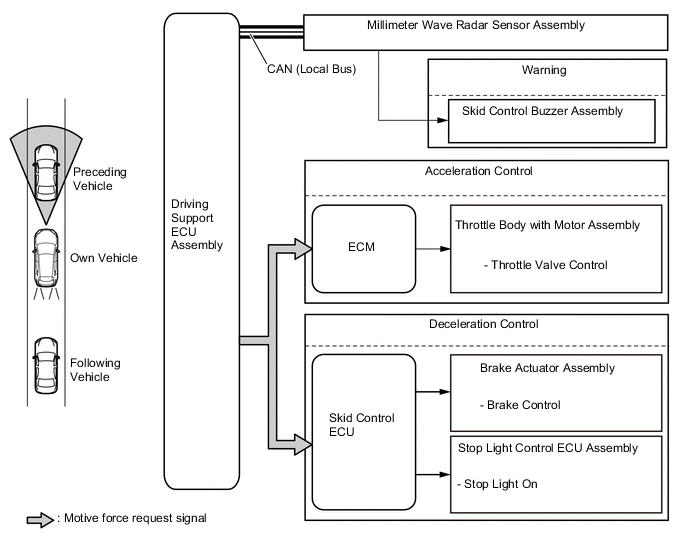

Deceleration Control Function
The driving support ECU assembly calculates the target deceleration rate in accordance with signals from the millimeter wave radar sensor assembly, and transmits a motive force request signal to the ECM and the skid control ECU. Upon receiving this signal, these ECUs control the motive force and decelerate the vehicle
This control is not performed in the presence of a parked vehicle or object.
When the driving support ECU assembly determines that further deceleration is necessary, it transmits a motive force request signal to the skid control ECU assembly. Upon receiving this signal, the skid control ECU assembly then activates the brake actuator assembly to apply the brakes
At this time, if the deceleration rate is higher than a predetermined value, the skid control ECU outputs a stop light illumination request signal in order to inform anyone who might be following the vehicle.
If the vehicle is not decelerating adequately, the skid control ECU sounds the skid control buzzer assembly based on the request signal from the driving support ECU assembly to urge the driver to depress the brake pedal.

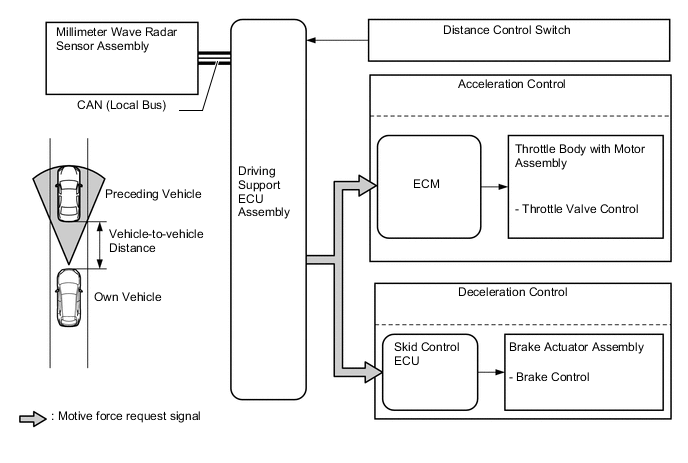

Follow-up Control Function
Under follow-up control, the driving support ECU assembly transmits a motive force request signal to the ECM and the skid control ECU, so that the vehicle can follow the vehicle ahead while maintaining a proper vehicle-to-vehicle distance in accordance with the vehicle speed. Upon receiving this signal, these ECUs control the motive force in order to effect follow-up control.
3 stages (long, middle and short) of vehicle-to-vehicle distance can be selected by operating the distance control switch.

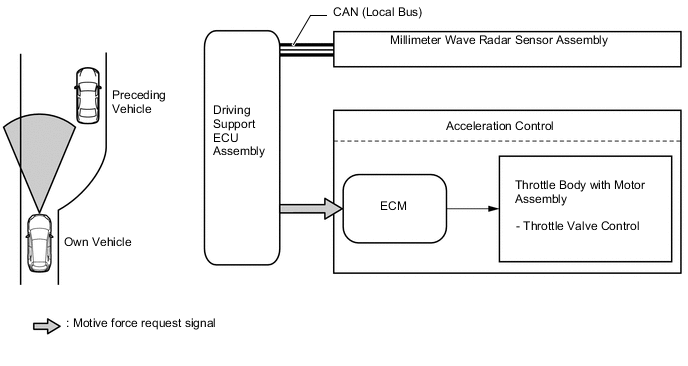

Acceleration Control Function
When the vehicle is running at approximately 50 km/h (31 mph) or more, if the driving support ECU assembly detects that either the vehicle ahead or the driver's own vehicle has changed lanes, a motive force signal is transmitted to the ECM in order to attain the set vehicle speed. Upon receiving this signal, the ECM controls the motive force in order to perform acceleration control.

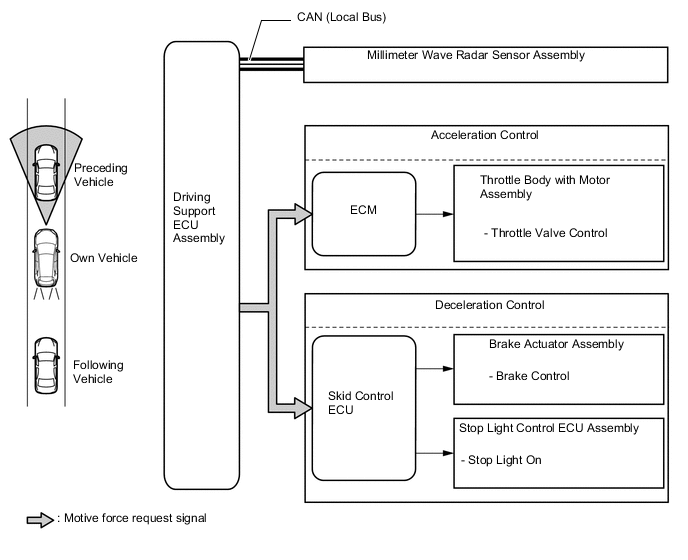

Stop Control Function (Models with Full-speed Range Following Function)
The driving support ECU assembly detects if the vehicle ahead stops through the signals from the millimeter wave radar sensor assembly and calculates the motive force required to stop the driver's own vehicle while maintaining the appropriate vehicle-to-vehicle distance. The ECU then transmits the motive force request signals to the ECM and the skid control ECU. Upon receiving this signal, these ECUs control the motive force and stop the vehicle.
At this time, the skid control ECU outputs a stop light illumination request signal in order to inform anyone who might be following the vehicle.
The distance between the driver's own vehicle and the preceding vehicle when the vehicles are stopped is set to approximately 3 m to 6 m (10 ft. to 20 ft.) regardless of the vehicle-to-vehicle distance preset by using the distance control switch.

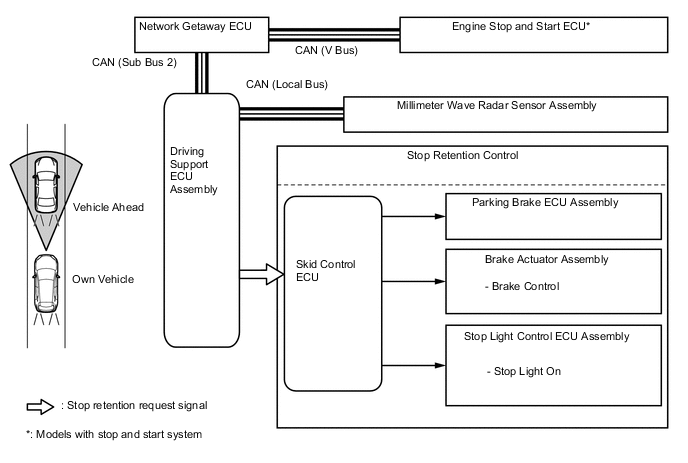

Stop Retention Control Function (Models with Full-speed Range Following Function)
After the vehicle has stopped under stop control, the driving support ECU assembly transmits a stop retention request signal to the skid control ECU. Upon receiving this signal, the skid control ECU activates the brake hold function and keeps the vehicle stopped.
When the vehicle is stopped by brake hold function, the idle stop control may occur by stop and start system.

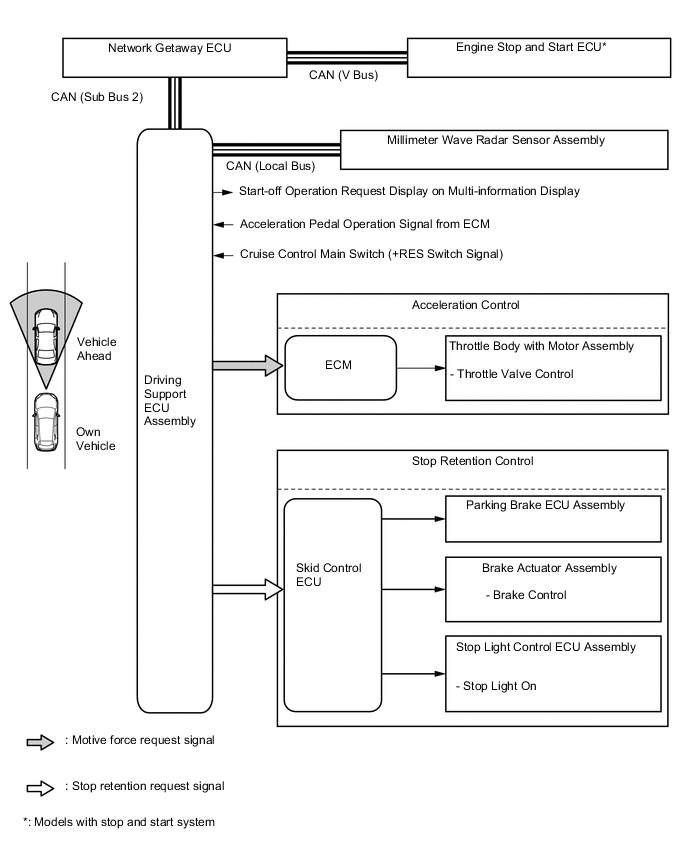

Start Control Function (Models with Full-speed Range Following Function)
When the driving support ECU assembly detects that the vehicle ahead starts moving again from the millimeter wave radar sensor assembly signal, it displays the messages "PRECEDING VEHICLE MOVEMENT" and "Operate Cruise Lever or Accelerator Pedal to Resume" on the multi-information display to urge the driver to perform the start-off operation (to push the cruise control main switch to the +RES side or to depress the accelerator pedal).
Upon receiving the start-off operation signal generated by pushing the cruise control main switch assembly to the +RES side or by depressing the accelerator pedal, the driving support ECU assembly transmits a motive force request signal to the ECM. Upon receiving this signal, the ECM controls the motive force, starts the vehicle and resumes follow-up control.
During idle stop status, engine starts automatically when the ECU detects the movement of preceding vehicle.
Automatic Cancel Control
When any of the conditions listed below occur while the vehicle is in cruise control, the cruise control is canceled. Then, the following warnings appear for the driver.
| Description of Malfunction | Warning | |||
|---|---|---|---|---|
| Multi-information Display | Master Warning Light | Multi Buzzer | Radar Cruise Control Indicator Light | |
| If either of the conditions listed below occur, the driving support ECU assembly clears the vehicle setting speed and cancels the cruise control:
The cruise control is disabled until the conditions are corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
Cruise Control Malfunction Visit Your Dealer | Illuminates | - | - |
| If the condition listed below occurs, the driving support ECU assembly clears the set vehicle speed and cancels speed control by the cruise control system.
The cruise control is disabled until the condition is corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
- | - | - | - |
| If the following condition occurs, the driving support ECU assembly clears the set vehicle speed and cancels the cruise control.
|
- | - | - | Illuminates |
| If the condition listed below occurs, the driving support ECU assembly cancels speed control by the cruise control system while retaining the set vehicle speed in its memory.
|
- | - | - | Illuminates |
| Description of Malfunction | Warning | |||
|---|---|---|---|---|
| Multi-information Display | Master Warning Light | Multi Buzzer | Radar Cruise Control Indicator Light | |
| If the condition listed below occurs, the driving support ECU assembly clears the set vehicle speed and cancels speed control by the cruise control system.
The cruise control is disabled until the condition is corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
Cruise Control Malfunction Visit Your Dealer | Illuminates | Sounds Once | - |
| If any of the conditions listed below occur, the driving support ECU assembly clears the set vehicle speed and cancels speed control by the cruise control system.
The cruise control is disabled until the engine switch is turned on (IG) again. |
Cruise Control Malfunction Visit Your Dealer | Illuminates | Sounds Once | - |
| If the condition listed below occurs, the driving support ECU assembly clears the set vehicle speed and cancels speed control by the cruise control system.
The cruise control is disabled until the condition is corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
- | - | - | - |
| If the condition listed below occurs, the driving support ECU assembly cancels speed control by the cruise control system while retaining the set vehicle speed in its memory.
The cruise control is disabled until the condition is corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
Radar Cruise Control Unavailable Clean Radar Sensor | Illuminates | Sounds Once | - |
| If either of the conditions listed below occurs, the driving support ECU assembly cancels speed control by the cruise control system while retaining the set vehicle speed in its memory.
The cruise control is disabled until the condition is corrected or the cruise control system is turned off and back on again using the ON-OFF button on the cruise control main switch. |
Radar Cruise Control Unavailable | Illuminates | Sounds Once | - |
| If the condition listed below occurs, the driving support ECU assembly cancels speed control by the cruise control system while retaining the set vehicle speed in its memory.
|
- | - | Sounds Once | Illuminates |
DIAGNOSIS
If a malfunction occurs in the dynamic radar cruise control system during cruise control operation, the driving support ECU assembly cancels cruise control operation, illuminates the master warning light and turns off the cruise control indicator light (constant speed control mode) or cruise control indicator light (vehicle-to-vehicle distance control mode), and cruise control SET indicator light. Also, "Cruise Control Malfunction Visit Your Dealer" is displayed on the multi-information display to inform the driver of a malfunction. At the same time, the malfunction is stored in memory as a 5-digit Diagnostic Trouble Code (DTC).
The DTC can be read when the Global TechStream (GTS) is connected to the DLC3. For details, refer to the Repair Manual.
