EXHAUST SYSTEM


  1. CONSTRUCTION


    1. The H2S oxidation catalyst has been placed in the main muffler to achieve a compact package and ensure the proper capacity of the main muffler. For details, see the 2WW Emission Control section.

    2. 2 ball joints are used to join the front exhaust pipe assembly to the exhaust manifold converter sub-assembly and the tail exhaust pipe assembly to the front exhaust pipe assembly. As a result, a simple construction and high reliability have been achieved.

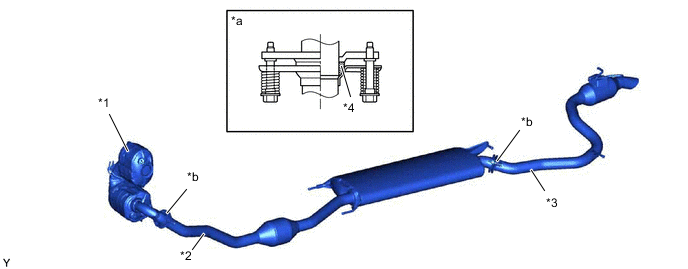

      A01QF4VC01
      *1 Exhaust Manifold Converter Sub-assembly *2 Front Exhaust Pipe Assembly
      *3 Tail Exhaust Pipe Assembly *4 Gasket
      *a Ball Joint *b Ball Joint Portion
