BRAKE CONTROL SYSTEM

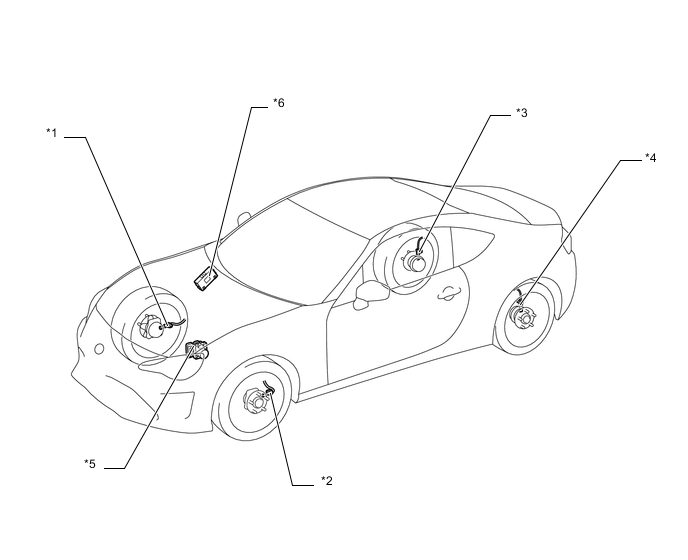

| *1 | Front Speed Sensor RH | *2 | Front Speed Sensor LH |
| *3 | Rear Speed Sensor RH | *4 | Rear Speed Sensor LH |
| *5 | Brake Actuator Assembly | *6 | ECM |
| *A | Models with TFT LCD Type Multi-information Display | *B | Models with Segment LCD Type Multi-information Display |
| *1 | VSC OFF Indicator Light | *2 | TRC OFF Indicator Light |
| *3 | Slip Indicator Light | *4 | Master Warning Light |
| *5 | Brake System Warning Light | *6 | Multi-information Display
|
| *7 | ABS Warning Light | *8 | Hill-start Assist Control Indicator Light |
| *9 | TRACK Indicator Light | *10 | Clock Assembly
|
| *11 | Combination Meter Assembly | *12 | Main Body ECU (Network Gateway ECU) |
| *13 | Stop Light Switch Assembly | *14 | Turn Signal Flasher Assembly |
| *15 | Steering Sensor | *16 | DLC3 |
| *17 | Parking Brake Switch Assembly | *18 | ECM |
| *19 | Pattern Select Switch Assembly | *20 | VSC OFF Switch |
| *21 | TRACK Switch | - | - |
| *a | The illustrations shown are examples only. | - | - |
