HEIGHT CONTROL SENSOR INSPECTION

PROCEDURE

  1. INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    1. Check the rear height control sensor sub-assembly LH.

      1. Connect 3 dry batteries of 1.5 V in series.

      2. Connect the positive (+) end of the batteries to terminal 3 (SHB) of the height control sensor and the negative (-) end of the batteries to terminal 1 (SHG). While slowly moving the sensor link up and down, measure the voltage between terminal 1 (SHG) and terminal 2 (SHRR).

      3. Measure the voltage according to the value(s) in the table below.

        Note:

        • Do not apply a voltage of more than 6 V.

        • Do not drop the rear height control sensor sub-assembly LH. If it is dropped, replace it with a new one.

        Standard Voltage

        Tester Connection

        Condition

        Specified Condition

        1 (SHG) - 2 (SHRR)

        High (+)

        Approx. 4.5 V

        Normal

        Approx. 2.5 V

        Low (-)

        Approx. 0.5 V

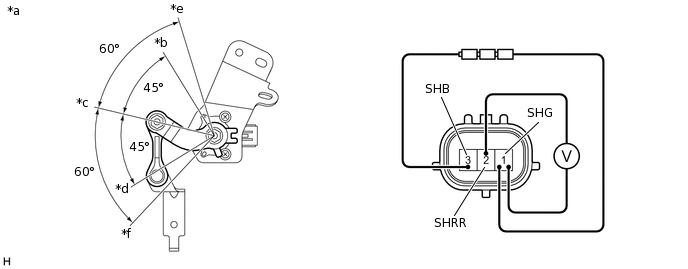

        E269066C02

        *a

        Component without harness connected

        (Rear Height Control Sensor Sub-assembly LH)

        *b

        Low (-)

        *c

        Normal

        *d

        High (+)

        *e

        Stopper position at lowest vehicle height

        *f

        Stopper position at highest vehicle height

        If the result is not as specified, replace the height control sensor sub-assembly LH.
