MIRROR SYSTEM

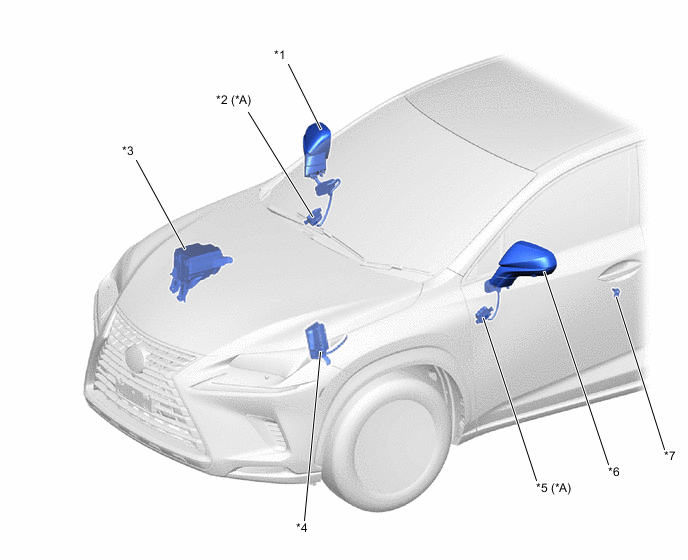

B002F7HC01
*A Models with Position Memory Function - -
*1 Outer Rear View Mirror Assembly RH *2 Outer Mirror Control ECU Assembly (Front Passenger Side)
*3

Engine Room Relay Block


  • Defogger Relay

 *4 ECM
*5 Outer Mirror Control ECU Assembly (Driver Side) *6 Outer Rear View Mirror Assembly LH
*7 Front Door Courtesy Light Switch Assembly (LH) - -

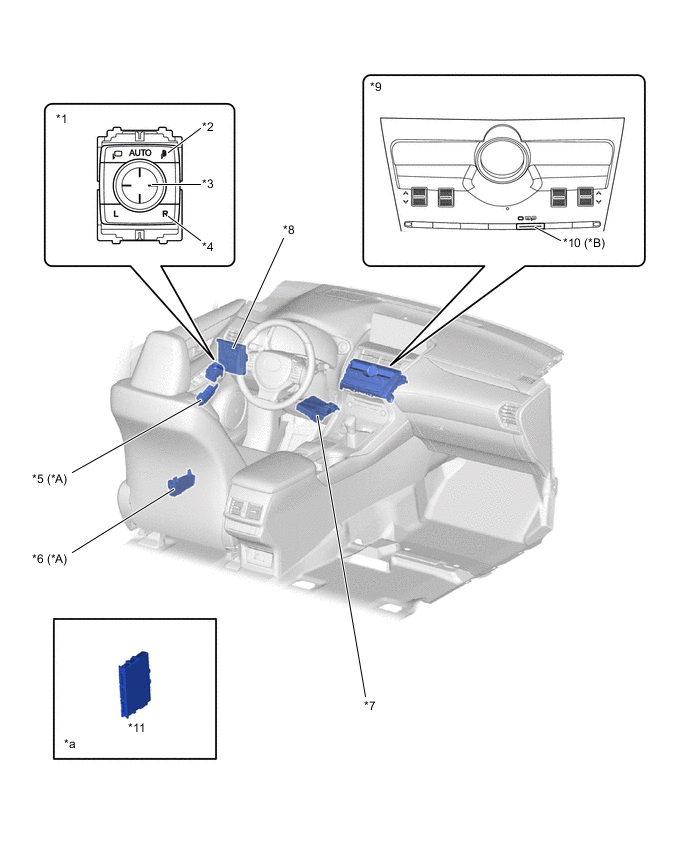

B002FTMC01
*A Models with Position Memory Function *B Models with Mirror Heater System
*1 Outer Mirror Switch Assembly *2 Auto and Retract Switch
*3 Mirror Surface Switch *4 Right and Left Switching Switch
*5 Seat Memory Switch *6 Front Power Seat Switch LH
*7 Air Conditioning Amplifier Assembly *8 Main Body ECU (Multiplex Network Body ECU)
*9 Air Conditioning Control Assembly *10 Rear Window Defogger and Mirror Heater Switch
*11 Certification ECU (Smart Key ECU Assembly) - -
*a Refer to the Service Bulletin for the installation of the part. - -
