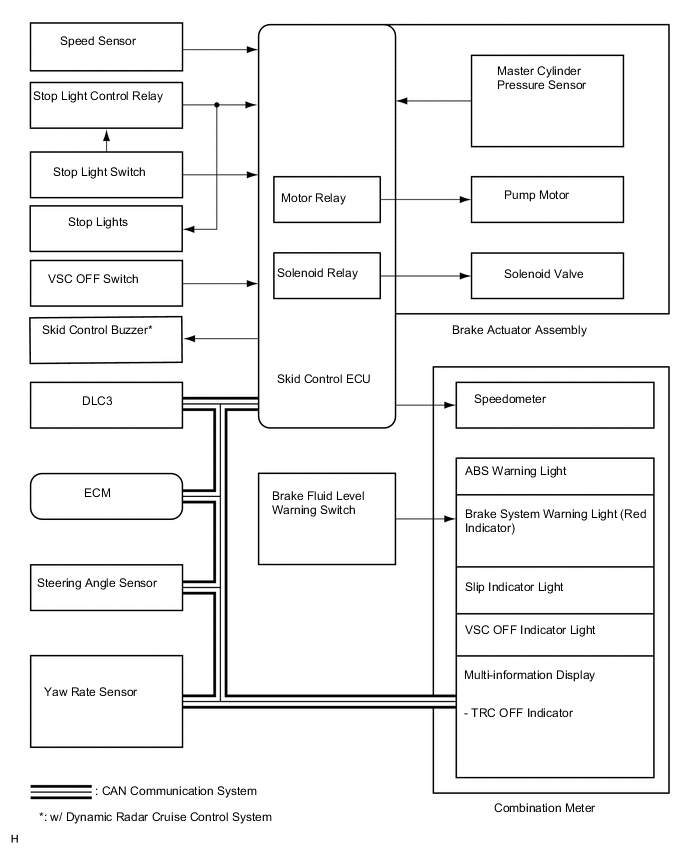

VEHICLE STABILITY CONTROL SYSTEM SYSTEM DIAGRAM

A004PQ2E05
Communication Table
Transmitting ECU (Transmitter) Receiving ECU (Receiver) Signal Communication Method
Skid control ECU Steering angle sensor Steering angle sensor request signal CAN communication
Skid control ECU Yaw rate sensor Yaw rate and acceleration request signal CAN communication
Skid control ECU ECM
  • Wheel speed signal

  • VSC data signal

CAN communication
ECM Skid control ECU
  • Shift position signal (except M/T)

  • Throttle position signal

  • Engine speed signal

  • Engine torque request signal

  • Accelerator pedal position signal

CAN communication
Skid control ECU Combination meter
  • ABS warning light signal

  • Brake system warning light (red indicator) signal

  • Slip indicator light signal

  • VSC OFF indicator light signal

  • TRC OFF indicator signal

CAN communication
Wheel speed signal Serial communication
