FRONT LOWER SUSPENSION ARM(for 2AR-FE, 6AR-FSE RH Side) INSTALLATION

PROCEDURE

INSTALL FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY RH
1. Install the front lower arm bushing stopper to the front lower No. 1 suspension arm sub-assembly RH.

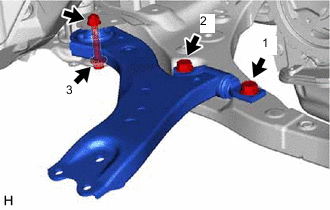

2. Install the front lower No. 1 suspension arm sub-assembly RH to the front frame assembly with the 3 bolts and nut in the order shown in the illustration.

  Torque:

  Bolt (1), (2)

  200 N*m { 2039 kgf*cm, 148 ft.*lbf }

  Bolt (3)

  135 N*m { 1377 kgf*cm, 100 ft.*lbf }

  Note

  Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
3. Connect the front lower No. 1 suspension arm sub-assembly RH to the front lower ball joint assembly RH with the bolt and 2 nuts.

  Torque:

  92 N*m { 938 kgf*cm, 68 ft.*lbf }
INSTALL FRONT FENDER APRON SEAL RH

for 2AR-FE: Click here

for 6AR-FSE: Click here
INSTALL FRONT WHEEL

Click here
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

Click here

PERFORM INITIALIZATION

Parking assist monitor system

for Initialization: Click here

for Calibration: Click here

Panoramic view monitor system

for Initialization: Click here

for Calibration: Click here

Lighting System (EXT) (w/ Automatic Headlight Beam Level Control System)
