ROOM LIGHT INSTALLATION

PROCEDURE

  1. INSTALL NO. 1 ROOM LIGHT BULB

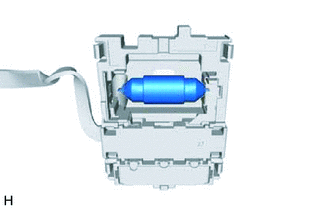

    1. E269154

      Install the No. 1 room light bulb to the room light switch base.

  2. INSTALL NO. 1 ROOM LIGHT ASSEMBLY

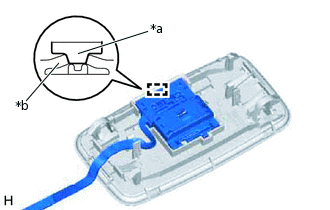

    1. E269153C01

      *a

      Switch part of room light switch base

      *b

      Switch part of No. 1 room light housing

      Align the switch part of the room light switch base with the switch part of the No. 1 room light switch housing as shown in the illustration.

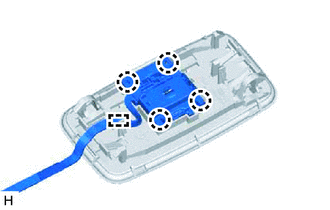

    2. E269152

      Attach the 4 claws and clamp to install the No. 1 room light switch housing to the room light switch base.

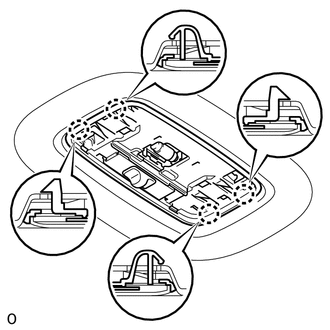

    3. E257055

      Attach the 4 claws to connect the No. 1 room light switch housing.

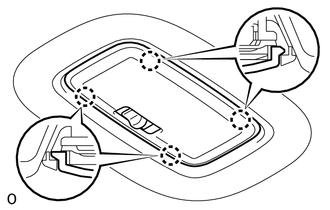

    4. E257054

      Attach the 4 claws to install the No. 1 room light lens.
