WASHER NOZZLE(for Rear Side) ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT REAR WASHER NOZZLE SUB-ASSEMBLY

    1. With the power switch turned to on (IG) check that the center stream of washer fluid sprays on the back door glass within the hatched area shown in the illustration.

      OK

      Washer fluid hits the back door glass in the area shown in the illustration.

      If the result is not as specified, adjust the rear washer nozzle sub-assembly.

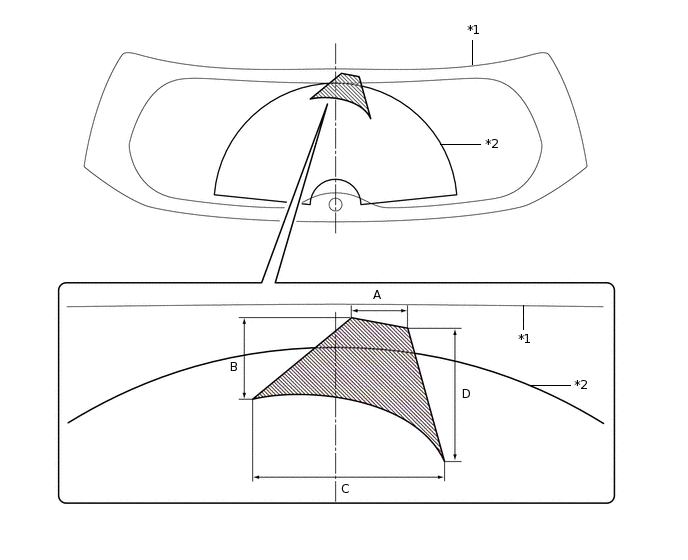

      E268407C01

      *1

      Glass Edge

      *2

      Wiper Pattern

      Standard

      Area

      Specified Condition

      Area

      Specified Condition

      A

      37.5 mm (1.4764 in.)

      B

      81.5 mm (3.2087 in.)

      C

      138.6 mm (5.4567 in.)

      D

      139.9 mm (5.5079 in.)
