HEADLIGHT DIMMER SWITCH INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. INSTALL HEADLIGHT DIMMER SWITCH ASSEMBLY

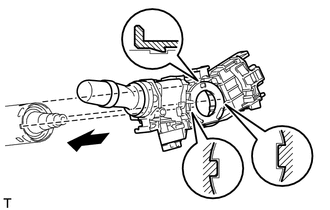

    1. E177502

      Install the headlight dimmer switch to the steering column, making sure that the stopper protrusions and cutout parts align.

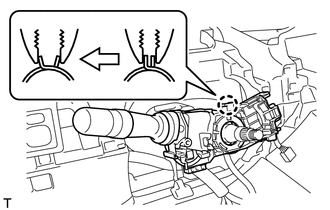

    2. E184270

      While loosening the band clamp, attach the claw to install the headlight dimmer switch.

    3. Connect the connector.

  2. INSTALL WINDSHIELD WIPER SWITCH ASSEMBLY

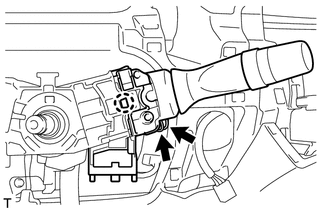

    1. E184268

      Attach the claw to install the windshield wiper switch.

    2. Connect the connectors.

  3. INSTALL SPIRAL CABLE SUB-ASSEMBLY

    1. Install the spiral cable (Click here).
