HYBRID CONTROL SYSTEM, Diagnostic DTC:P0C76-523

DTC Code DTC Name
P0C76-523 Hybrid Battery System Discharge Time Too Long

DTC SUMMARY

  1. MALFUNCTION DESCRIPTION

    The hybrid vehicle control ECU detects that the electrical charge stored in the high-voltage condenser of the inverter with converter assembly cannot be discharged.

    The cause of this malfunction may be one of the following:

    • Inside of inverter voltage sensor (VH) circuit malfunction

    • Voltage sensor (VH) malfunction

    • Motor generator control ECU (MG ECU) malfunction

    • Communication (wire harness) malfunction

    • High voltage system malfunction

    • Inverter with converter assembly malfunction

    • Shutdown signal circuit malfunction

    • Hybrid vehicle control ECU malfunction

    • Wire harness malfunction

    • Inverter with converter assembly malfunction

DESCRIPTION

For a description of the inverter.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P0C76-523

Hybrid Battery System Discharge Time Too Long

The inverter voltage (VH) does not drop during discharge.

(Discharge: Offsetting of the residual pressure in the high-voltage side after power switch is turned off)

(1 trip detection logic)

  • Inverter with converter assembly

  • Wire harness or connector

  • Hybrid vehicle control ECU

Does not come on

Master Warning Light:

Comes on
Tip:

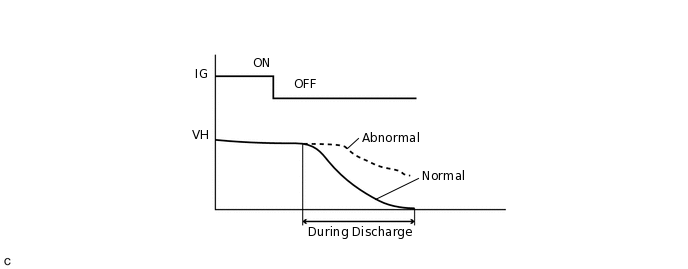

When the power switch is turned from on (READY) to off, the MG ECU discharges voltage stored in the inverter by allowing current to flow to motor (MG2) without generating torque. When the vehicle is normal, VH voltage becomes approximately 0 V after discharging. If VH voltage exceeds a specified value, this DTC is stored.

A111758E07
Table 1. Related Data List

DTC No.

Data List

P0C76-523

VL-Voltage before Boosting

The following items can be helpful when performing repairs:

  • Data List

  • Ready Signal

WIRING DIAGRAM

Refer to the wiring diagram for the shut down signal circuit.

Click here

CAUTION / NOTICE / HINT

CAUTION:

  • Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.

  • After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.

    Click here

    Tip:

    Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.

Note:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereClick hereClick hereClick here

Tip:

After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.

  1. Turn the power switch off and wait for 30 seconds or more.

  2. Turn the power switch on (READY) and wait for 30 seconds or more.

  3. Turn the power switch off and wait for 30 seconds or more.

PROCEDURE

  1. CHECK DTC OUTPUT (HYBRID CONTROL)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes.

    4. Check for DTCs.

      Powertrain > Hybrid Control > Trouble Codes

      Result

      Result

      Proceed to

      P0C76-523 only is output, or DTCs except the ones in the table below are also output.

      A

      Any of the following DTCs including pending DTCs are also output.

      B

      Malfunction Content

      Relevant DTC

      Microcomputer malfunction

      P0A1A-151, 658, 791

      Generator Control Module

      P0A1B-786

      Drive Motor "A" Control Module

      P0A1D-148

      Hybrid Powertrain Control Module

      P1C2A-155

      Generator A/D Converter Circuit

      P1CA6-156

      Generator Control Module Malfunction

      P1CA7-193

      Drive Motor Control Module Malfunction

      P1CAC-200

      Generator Position Sensor Angle Malfunction

      P1CAD-168

      Drive Motor "A" Position Sensor Angle Malfunction

      P1CAF-792

      Generator Position Sensor REF Signal Cycle Malfunction

      P1CB2-793

      Generator Position Sensor REF Signal Stop Malfunction

      P2511-149

      HV CPU Power Relay Sense Circuit Intermittent No Continuity

      P3133-659

      Communication Error from Generator to Drive Motor "A"

      P3134-661

      Communication Error from Drive Motor "A" to Generator

      P324E-788

      MG-ECU Power Relay Intermittent Circuit

      Power source circuit malfunction

      P06B0-163

      Sensor Power Supply "A" Circuit / Open

      P06D6-511

      Sensor Reference Voltage "F" Circuit / Open

      P06E6-164

      Sensor Power Supply "C" Circuit / Open

      P1C73-512

      Sensor Standard Voltage "F" Circuit / Open

      Communication system malfunction

      U0110 (all INF codes)*

      Lost Communication with Drive Motor Control Module "A"

      Sensor and actuator circuit malfunction

      P0A3F-243

      Drive Motor "A" Position Sensor Circuit

      P0A40-500

      Drive Motor "A" Position Sensor Circuit Range / Performance

      P0A41-245

      Drive Motor "A" Position Sensor Circuit Low

      P0A4B-253

      Generator Position Sensor Circuit

      P0A4C-513

      Generator Position Sensor Circuit Range / Performance

      P0A4D-255

      Generator Position Sensor Circuit Low

      P0ADC-226

      Hybrid Battery Positive Contactor Control Circuit High

      P0AE0-228

      Hybrid Battery Negative Contactor Control Circuit High

      P0AE7-224

      Hybrid Battery Precharge Contactor Control Circuit High

      System malfunction

      P0D2F-266

      Drive Motor "A" Inverter Voltage Sensor Circuit Low

      P0D30-267

      Drive Motor "A" Inverter Voltage Sensor Circuit High
      Tip:

      • *1: If any INF codes are output for this DTC, refer to the corresponding diagnostic procedure.

      • P0C76-523 may be output as a result of the malfunction indicated by the DTCs above.

        1. The chart above is listed in inspection order of priority.

        2. Check DTCs that are output at the same time by following the listed order. (The main cause of the malfunction can be determined without performing unnecessary inspections.)

    5. Turn the power switch off.

    B

    GO TO DTC CHART (HYBRID CONTROL SYSTEM)

    Click hereClick hereClick here

    A

  2. CHECK SHUT DOWN SIGNAL CIRCUIT

    Click here

    Tip:

    If the "Shut Down Signal Circuit" inspection results are normal, perform the next step.

    Result

    Proceed to

    NEXT
    NEXT

    REPLACE INVERTER WITH CONVERTER ASSEMBLY
