AUDIO AND VISUAL SYSTEM

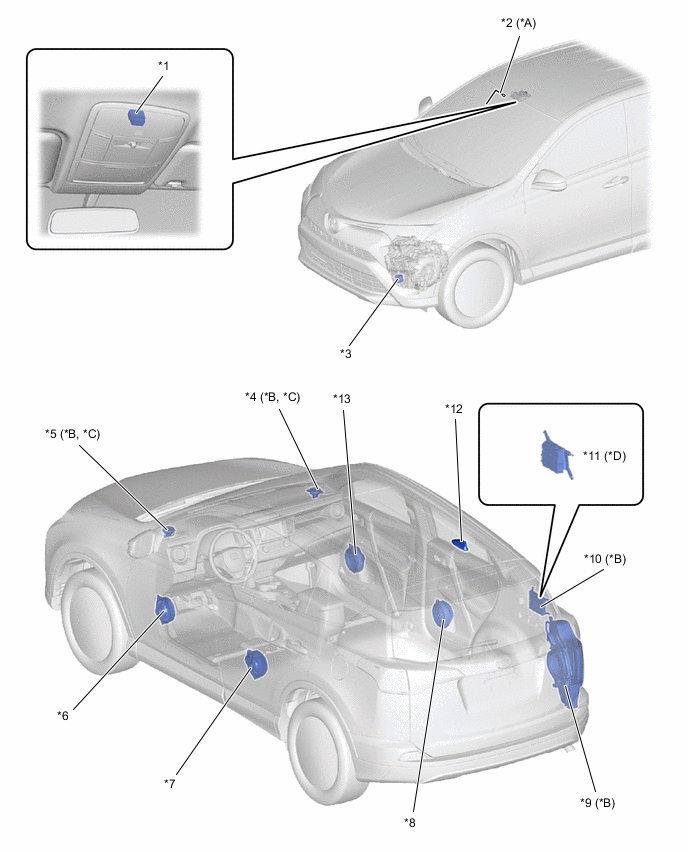

B0089OCC01
*A Models with Digital Audio Broadcast (DAB) *B Models with 11-speaker System
*C Models with 6-speaker System *D Models with ERA-GLONASS
*1 Telephone Microphone Assembly *2 DAB Antenna
*3 Shift Lever Position Sensor *4 Front No. 2 Speaker Assembly RH
*5 Front No. 2 Speaker Assembly LH *6 Front No. 1 Speaker Assembly LH
*7 Rear Speaker Assembly LH *8 Rear Speaker Assembly RH
*9 Woofer Box Speaker Assembly *10 Stereo Component Amplifier Assembly
*11 Telematics Transceiver *12 Amplifier Antenna Assembly
*13 Front No. 1 Speaker Assembly RH - -

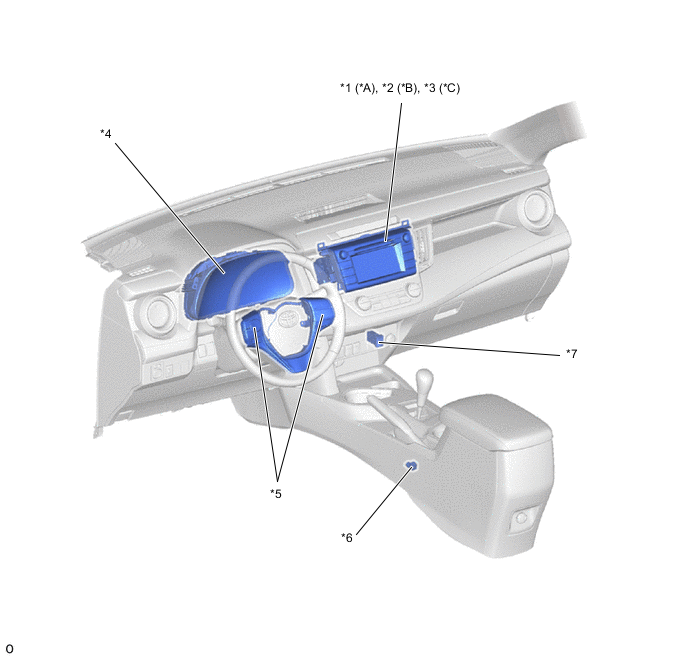

B0089PFC04
*A Models with Base Audio System *B Models with Display Audio System
*C Models with Extension Box - -
*1 Radio Receiver Assembly *2 Radio and Display Receiver Assembly
*3

Radio and Display Receiver Assembly


  • Extension Box (Navigation ECU)

 *4 Combination Meter Assembly
*5 Steering Pad Switch Assembly *6 Parking Brake Switch Assembly
*7 No. 1 Stereo Jack Adapter Assembly - -
