EXHAUST PIPE COMPONENTS
ILLUSTRATION
| *1 | BODY MOUNTING PLATE | *2 | CENTER FLOOR CROSSMEMBER BRACE |
| *3 | FRONT CENTER FLOOR BRACE | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | FRONT EXHAUST PIPE ASSEMBLY (TWC: Rear Catalyst) | *2 | CENTER EXHAUST PIPE ASSEMBLY |
| *3 | HEATED OXYGEN SENSOR (for Bank 2) | *4 | HEATED OXYGEN SENSOR (for Bank 1) |
| *5 | NO. 1 EXHAUST PIPE SUPPORT BRACKET (for Lower Side) | *6 | EXHAUST PIPE SUPPORT |
| *7 | GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | * | For use with SST |
| ● | Non-reusable part | - | - |

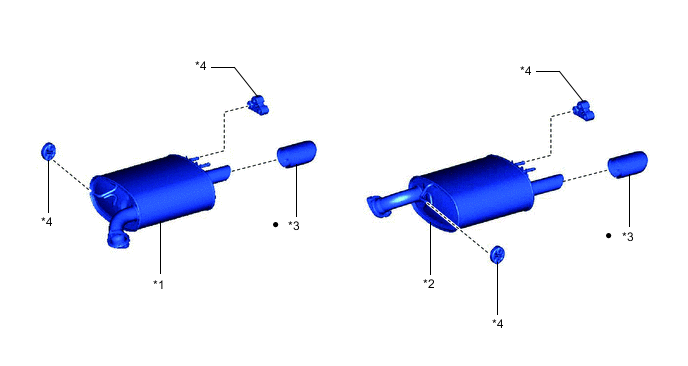

ILLUSTRATION
| *1 | TAIL EXHAUST PIPE ASSEMBLY | *2 | TAIL EXHAUST PIPE ASSEMBLY LH |
| *3 | TAIL EXHAUST PIPE BAFFLE SUB-ASSEMBLY | *4 | EXHAUST PIPE SUPPORT |
| ● | Non-reusable part | - | - |
