TIRE PRESSURE WARNING RECEIVER(for Hatchback) INSTALLATION
PROCEDURE
INSTALL TIRE PRESSURE WARNING ECU AND RECEIVER
Note:Do not drop the tire pressure warning ECU and receiver, strike it with tools or subject it to impact.
If the tire pressure warning ECU and receiver is subjected to an impact, replace it with a new one.
-

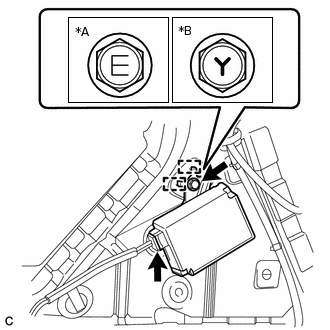

*A
for Type A
*B
for Type B
Connect the connector to the tire pressure warning ECU and receiver.
Engage the 2 hooks to temporarily install the tire pressure warning ECU and receiver.
Install the bolt.
for Type A
8.3 N*m
85 kgf*cm
73 in.*lbf
for Type B
10 N*m
102 kgf*cm
7 ft.*lbf
Note:There are 2 types of bolts and the tightening torque depends on the type of bolt used as shown in the illustration. Therefore, confirm the tightening torque before installing the bolt.
INSTALL ROOF SIDE INNER GARNISH ASSEMBLY RH
INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH
INSTALL LOWER DECK TRIM SIDE BOARD RH (w/ Deck Board)
INSTALL NO. 2 DECK SIDE TRIM HOOK (for RH Side)
INSTALL REAR SEAT SIDE GARNISH RH
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY RH
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH
INSTALL REAR DOOR SCUFF PLATE RH
INSTALL REAR SEAT ASSEMBLY
INSTALL REAR DECK TRIM COVER
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Package Tray Trim)
INSTALL DECK FLOOR BOX RH (w/ Deck Floor Box)
INSTALL DECK FLOOR BOX LH (w/ Deck Floor Box)
INSTALL REAR DECK FLOOR BOX (w/ Deck Floor Box)
INSTALL REAR FLOOR MAT ASSEMBLY
INSTALL DECK BOARD ASSEMBLY (w/ Deck Board)
REGISTER TRANSMITTER ID
INSPECT TIRE PRESSURE WARNING SYSTEM
PERFORM INITIALIZATION
